Q-1U05C00031.5M

Active

Amphenol Custom Cable

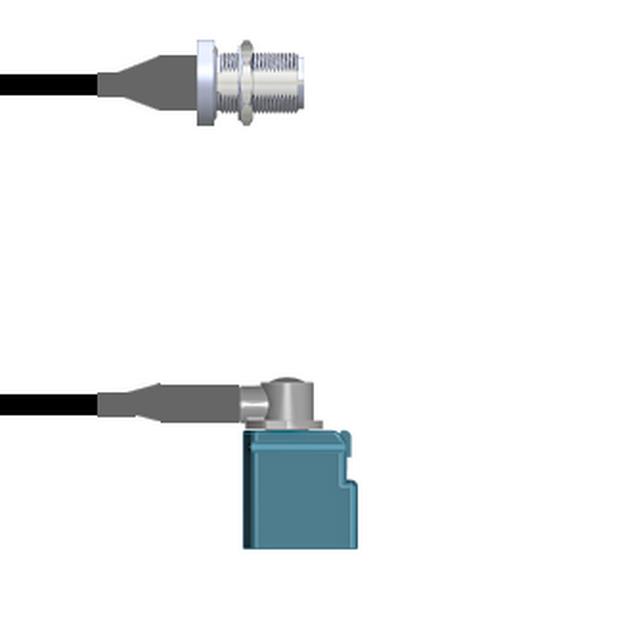

CBL ASSY NTYPE-FAKRA JK-JK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U05C00031.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JK-JK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U05C00031.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1U05C0 Series

Part	Color	Features	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Type	Length	Length	2nd Connector	1st Connector Mounting Feature	Cable Type	1st Connector	Overall Impedance	Style	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1U05C0003.75M	Black	Shielded	Female	Female	Panel Mount	29.53 "	750 mm	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-174	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz
Amphenol Custom Cable Q-1U05C0005001M	Copper	Shielded	Female	Female	Panel Mount	39.4 in	1 m	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-316	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	3.3 ft
Amphenol Custom Cable Q-1U05C0003072i	Black	Shielded	Female	Female	Panel Mount	72 in	1.8 m	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-174	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	6 ft
Amphenol Custom Cable Q-1U05C00052.5M	Copper	Shielded	Female	Female	Panel Mount	98.4 in	2.5 m	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-316	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	8.2 '
Amphenol Custom Cable Q-1U05C0003018i	Black	Shielded	Female	Female	Panel Mount			Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-174	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1U05C0005.75M	Copper	Shielded	Female	Female	Panel Mount	29.53 "	750 mm	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-316	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz
Amphenol Custom Cable Q-1U05C0003001M	Black	Shielded	Female	Female	Panel Mount	39.4 in	1 m	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-174	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	3.3 ft
Amphenol Custom Cable Q-1U05C0005018i	Copper	Shielded	Female	Female	Panel Mount			Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-316	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1U05C00031.5M	Black	Shielded	Female	Female	Panel Mount	59.1 in	1.5 m	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-174	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	4.9 ft
Amphenol Custom Cable Q-1U05C0005072i	Copper	Shielded	Female	Female	Panel Mount	72 in	1.8 m	Fakra Jack Right Angle	Bulkhead - Front Side Nut	RG-316	N-Type Jack	50 Ohms	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 94.88
		25	$ 88.56
		50	$ 82.23
		100	$ 76.80
		250	$ 72.28

Description

General part information

Q-1U05C0 Series

Cable Assembly Coaxial N-Type to Fakra RG-174 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
