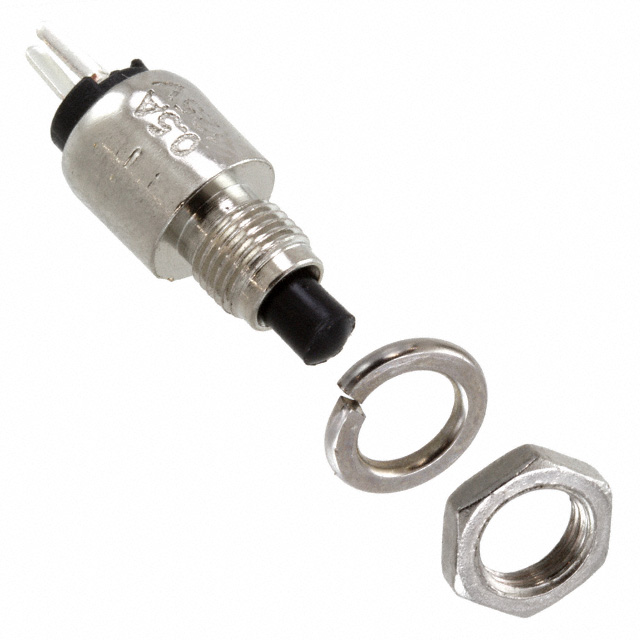

GPB081A09B

Active

CW Industries

SWITCH PUSH SPST-NO 0.5A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH PUSH SPST-NO 0.5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GPB081A09B

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	500 mA
Electrical Life	80000 Cycles
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	5.2 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V

Part	Circuit	Termination Style	Actuator Marking	Current Rating (Amps)	Mounting Type	Actuator Type	Switch Function	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Color - Actuator/Cap	Electrical Life
CW Industries GPB081A09R	SPST-NO	PC Pin	No Marking	500 mA	Panel Mount Rear	Round Plunger	Off-Mom	Standard	5.2 mm	125 V	Red
CW Industries GPB081A09B	SPST-NO	PC Pin	No Marking	500 mA	Panel Mount Rear	Round Plunger	Off-Mom	Standard	5.2 mm	125 V	Black	80000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
