LTM8021IV#PBF
Active36VIN, 500MA STEP-DOWN DC/DC ΜMODULE (POWER MODULE)
Deep-Dive with AI
Search across all available documentation for this part.
LTM8021IV#PBF
Active36VIN, 500MA STEP-DOWN DC/DC ΜMODULE (POWER MODULE)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8021IV#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

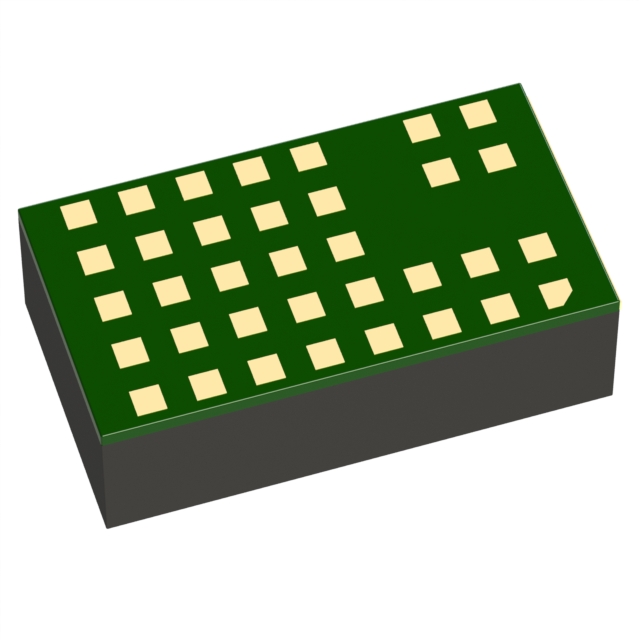

| Package / Case | 35-BLGA Module |
| Size / Dimension [x] | 0.44 " |
| Size / Dimension [x] | 11.3 mm |
| Size / Dimension [y] | 6.3 mm |
| Size / Dimension [y] | 0.25 in |
| Size / Dimension [z] | 0.11 in |
| Size / Dimension [z] | 2.8 mm |
| Supplier Device Package | 35-LGA |
| Supplier Device Package [x] | 11.25 |
| Supplier Device Package [y] | 6.25 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.48 | |
| 5 | $ 12.71 | |||
| 10 | $ 12.39 | |||
| 25 | $ 11.98 | |||
| 40 | $ 11.78 | |||
| 80 | $ 11.48 | |||
| 230 | $ 11.04 | |||
| 440 | $ 10.79 | |||
Description
General part information
LTM8021 Series
The LTM8021 is a 36VIN500mA, step-down DC/DC μModule®(power module). Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3V to 36V, the LTM8021 supports an output voltage range of 0.8V to 5V, set by a single resistor. Only an output and bulk input capacitor are needed to finish the design.The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. A built-in soft-start timer is adjustable with just a resistor and capacitor.The LTM8021 is packaged in a thermally enhanced, compact (11.25mm × 6.25mm) and low profile (2.82mm) overmolded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8021 is RoHS compliant.ApplicationsAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation
