Technical Specifications
Parameters and characteristics for this part
| Specification | SPT01-335DEE |
|---|---|
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | 6-VQFN Exposed Pad |
| Power - Peak Pulse | 100 W |
| Power Line Protection | False |
| Supplier Device Package | 6+3-QFN (3x3) |
| Type | Zener |
| Unidirectional Channels [custom] | 3 |
| Voltage - Breakdown (Min) [Min] | 38 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 46 V |
| Voltage - Reverse Standoff (Typ) | 33 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.83 | |||
| 100 | $ 0.64 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.83 | |||
| 100 | $ 0.64 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.46 | |||
| Tape & Reel (TR) | 3000 | $ 0.38 | ||
Description
General part information

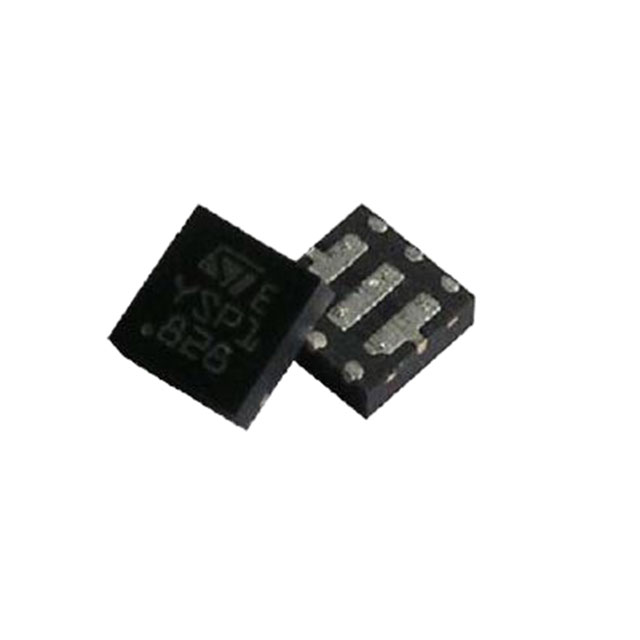

SPT01-335DEE Series
The SPT01-335 is specifically designed for the protection of 24 V proximity sensors. It implements the reverse polarity and the overvoltage protection of the sensor power supply and the power switch overvoltage protection.
It provides a very compact and flexible solution offering two connections for PNP or NPN sensors as shown in and Figure 9.
Thanks to high performance ST technology, the SPT01-335 protects the proximity sensor to the highest level compliant with IEC 61000-4-2, IEC 61000-4-4 and IEC 60947-5-2 / IEC 61000-4-5 standards.
