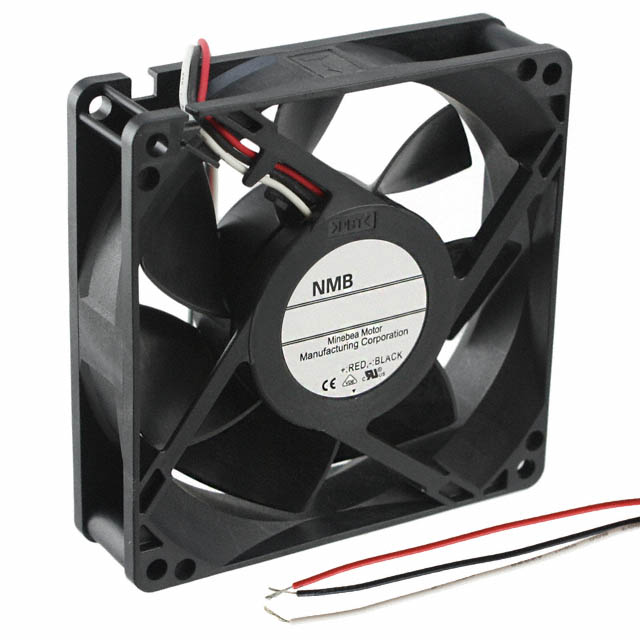

3610VL-05W-B29-E00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 92X25MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
3610VL-05W-B29-E00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 92X25MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3610VL-05W-B29-E00 |
|---|---|
| Air Flow | 54 CFM |
| Air Flow | 1.51 m³/min |
| Approval Agency | UL, VDE, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 110 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 35.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.64 W |
| RPM | 3200 RPM |
| Static Pressure | 49.8 Pa |
| Static Pressure | 0.2 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 135.17 g |
| Weight | 0.298 lb |
| Width [y] | 25 mm |
3610VL Series
| Part | Approval Agency | Noise | Termination | Material - Blade | Current Rating (Amps) | Air Flow | Air Flow | RPM | Voltage - Rated | Static Pressure | Static Pressure | Fan Type | Power (Watts) | Lifetime @ Temp. | Material - Frame | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Weight | Weight | Width [y] | Voltage Range [Min] | Voltage Range [Max] | Bearing Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | CE UL VDE | 51 dB(A) | 2 Wire Leads | Plastic | 0.72 A | 2.7 m³/min | 96.4 CFM | 5600 RPM | 12 VDC | 149.9 Pa | 0.602 in H2O | Tubeaxial | 8.64 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 7 V | 13.8 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 51 dB(A) | 2 Wire Leads | Plastic | 0.72 A | 2.7 m³/min | 96.4 CFM | 5600 RPM | 12 VDC | 149.9 Pa | 0.602 in H2O | Tubeaxial | 8.64 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 7 V | 13.8 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 45 dB(A) | 2 Wire Leads | Plastic | 400 mA | 2.16 m³/min | 77 CFM | 4500 RPM | 12 VDC | 98 Pa | 0.393 in H2O | Tubeaxial | 4.8 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 7 V | 13.8 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 51 dB(A) | 2 Wire Leads | Plastic | 0.38 A | 2.7 m³/min | 96.4 CFM | 5600 RPM | 24 VDC | 149.9 Pa | 0.602 in H2O | Tubeaxial | 9.12 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 14 VDC | 27.6 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 38.5 dB | 2 Wire Leads | Plastic | 140 mA | 1.71 m³/min | 61.1 CFM | 3600 RPM | 24 VDC | 65 Pa | 0.261 in H2O | Tubeaxial | 3.36 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 14 VDC | 27.6 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 45 dB(A) | 3 Wire Leads | Plastic | 0.22 A | 2.16 m³/min | 77 CFM | 4500 RPM | 24 VDC | 98 Pa | 0.393 in H2O | Tubeaxial | 5.28 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 14 VDC | 27.6 VDC | Ball | Locked Rotor Sensor |
NMB TECHNOLOGIES | CE UL VDE | 35.5 dB | 3 Wire Leads | Plastic | 110 mA | 1.51 m³/min | 54 CFM | 3200 RPM | 24 VDC | 49.8 Pa | 0.2 in H2O | Tubeaxial | 2.64 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 14 VDC | 27.6 VDC | Ball | Locked Rotor Sensor |
NMB TECHNOLOGIES | CE UL VDE | 38.5 dB | 2 Wire Leads | Plastic | 0.24 A | 1.71 m³/min | 61.1 CFM | 3600 RPM | 12 VDC | 65 Pa | 0.261 in H2O | Tubeaxial | 2.88 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 7 V | 13.8 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 45 dB(A) | 2 Wire Leads | Plastic | 400 mA | 2.16 m³/min | 77 CFM | 4500 RPM | 12 VDC | 98 Pa | 0.393 in H2O | Tubeaxial | 4.8 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 7 V | 13.8 VDC | Ball | |
NMB TECHNOLOGIES | CE UL VDE | 38.5 dB | 2 Wire Leads | Plastic | 0.24 A | 1.71 m³/min | 61.1 CFM | 3600 RPM | 12 VDC | 65 Pa | 0.261 in H2O | Tubeaxial | 2.88 W | 100000 Hrs | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 135.17 g | 0.298 lb | 25 mm | 7 V | 13.8 VDC | Ball |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3610VL Series
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 54.0 CFM (1.51m³/min) 3 Wire Leads
