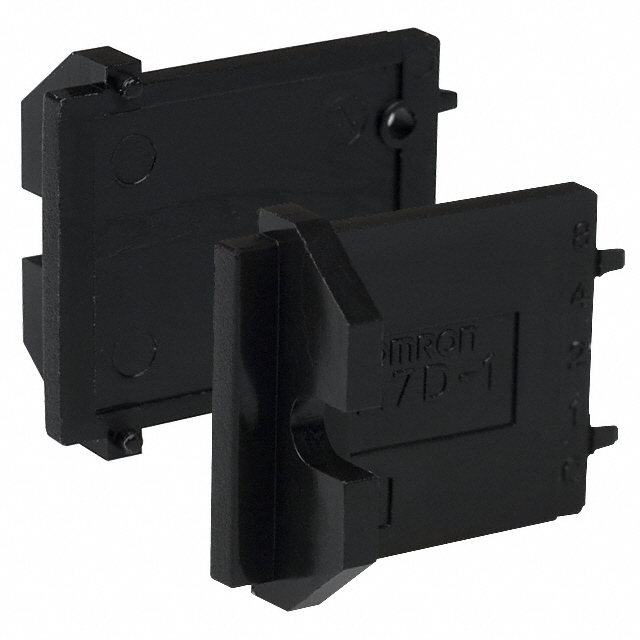

A7D-1M-1

Active

Omron Electronics Inc-EMC Div

END CAP BLK BACK MNT 2PCS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

END CAP BLK BACK MNT 2PCS

Technical Specifications

Parameters and characteristics for this part

Specification	A7D-1M-1

Accessory Type	End Cap
For Use With/Related Products	SW504 ~ SW505-ND, SW279 ~ SW280-ND

Part	End Caps	Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Mounting Type	Actuator Type	Electrical Life	Output Code	Number of Sections	Read Out	Depth Behind Flange [z]	Termination Style	Contact Rating @ Voltage	For Use With/Related Products	Accessory Type	Depth Behind Flange	Read Out [Min]	Read Out [Max]	Features
Omron Electronics Inc-EMC Div A7D-206-PM-1	Sold Separately	Black	-10 °C	158 °F	Panel Mount Snap-In	Pushwheel	20000 Steps	SPDT	1	+/-	17.5 mm	PC Pin	0.1 A 30 VDC
Omron Electronics Inc-EMC Div A7D-4106-67-1
Omron Electronics Inc-EMC Div A7D-2M-1														SW279 ~ SW280-ND SW504 ~ SW505-ND	End Cap
Omron Electronics Inc-EMC Div A7D-1M-1														SW279 ~ SW280-ND SW504 ~ SW505-ND	End Cap
Omron Electronics Inc-EMC Div A7D-206-PM	Sold Separately	Light Gray	-10 °C	158 °F	Panel Mount Snap-In	Pushwheel	20000 Steps	SPDT	1	+/-	17.5 mm	PC Pin	0.1 A 30 VDC
Omron Electronics Inc-EMC Div A7D-2PA														SW279 ~ SW280-ND SW504 ~ SW505-ND	Spacer
Omron Electronics Inc-EMC Div A7D-5106-66-1
Omron Electronics Inc-EMC Div A7D-106-1	Sold Separately	Black	-10 °C	158 °F	Panel Mount Screw	Pushwheel	20000 Steps	BCD	1			PC Pin	0.1 A 30 VDC			17 mm	0	9
Omron Electronics Inc-EMC Div A7D-206-S07-1	Sold Separately	Black	-10 °C	158 °F	Panel Mount Snap-In	Pushwheel	20000 Steps	BCD	1		17.5 mm	PC Pin	0.1 A 30 VDC				0	7	Internal Stoppers
Omron Electronics Inc-EMC Div A7D-2PA-1														SW279 ~ SW280-ND SW504 ~ SW505-ND	Spacer
