3122-22-1-0500-008-1-TS

Active

CnC Tech, LLC

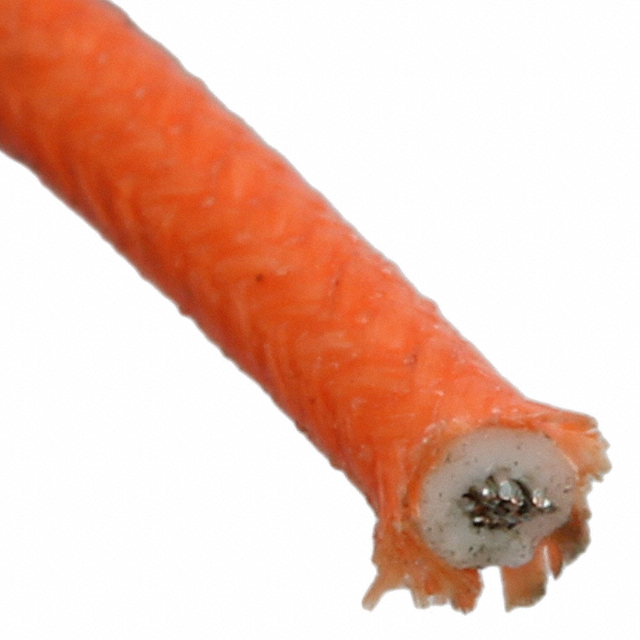

HOOK-UP STRND 22AWG 300V ORN 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet prior to DC 22/03

3122-22-1-0500-008-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 22AWG 300V ORN 50'

Deep-Dive with AI

DocumentsDatasheet Datasheet prior to DC 22/03

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3122-22-1-0500-008-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0102 in
Conductor Strand [custom]	7
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.077 "
Jacket (Insulation) Diameter [diameter]	1.96 mm
Jacket (Insulation) Material	Silicone Rubber, Fiberglass
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Orange
Length	15.24 m
Length [x]	500 ', 25 ft, 100 ft, 50 ft
Length [x]	152.4 m, 7.62 m, 30.5 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-50 °C
Voltage	300 V
Wire Gauge	22 AWG

3122-22 Series

Part	Features	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length	Jacket Color	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Cable Type	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]
CnC Tech, LLC 3122-22-1-0500-008-1-TS	Oil Resistant	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber	15.24 m	Orange	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C
CnC Tech, LLC 3122-22-1-0500-003-1-TS	Oil Resistant	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber	15.24 m	Yellow	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C
CnC Tech, LLC 3122-22-1-0500-011-1-TS	Oil Resistant	25 ft 50 ft 500 '	7.62 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber	15.24 m	Yellow Green Stripe	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C
CnC Tech, LLC 3122-22-1-0500-004-1-TS	Oil Resistant	50 ft 100 ft 500 '	30.5 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber	15.24 m	Red	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C
CnC Tech, LLC 3122-22-1-0500-010-1-TS	Oil Resistant	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber		Violet	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C
CnC Tech, LLC 3122-22-1-0500-006-1-TS	Oil Resistant	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber	15.24 m	Brown	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C
CnC Tech, LLC 3122-22-1-0500-001-1-TS	Oil Resistant	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.077 "	1.96 mm	0.0102 in	7	Fiberglass Silicone Rubber	15.24 m	Black	300 V	0.38 mm	0.015 in	22 AWG	Hook-Up	Copper Tinned	-50 °C	200 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 31.86
		1	$ 17.89
		1	$ 9.90
		2	$ 17.07
		2	$ 9.42
		3	$ 29.85
		4	$ 8.98
		5	$ 28.34
		5	$ 15.97
		10	$ 15.24
		10	$ 27.00
		10	$ 8.41
		20	$ 14.51
		20	$ 8.02
		25	$ 25.32
		40	$ 7.64
		50	$ 13.60
		50	$ 24.15
		100	$ 12.87
		100	$ 7.16
		100	$ 22.97
		200	$ 12.32
		200	$ 6.78
		400	$ 6.49
		500	$ 0.15
		500	$ 11.86

Description

General part information

3122-22 Series

22 AWG Hook-Up Wire 7/0.0102" Orange 300V 50.00' (15.24m)

Documents

Technical documentation and resources

Datasheet

Datasheet prior to DC 22/03

Datasheet
