531-40165

Active

Amphenol RF

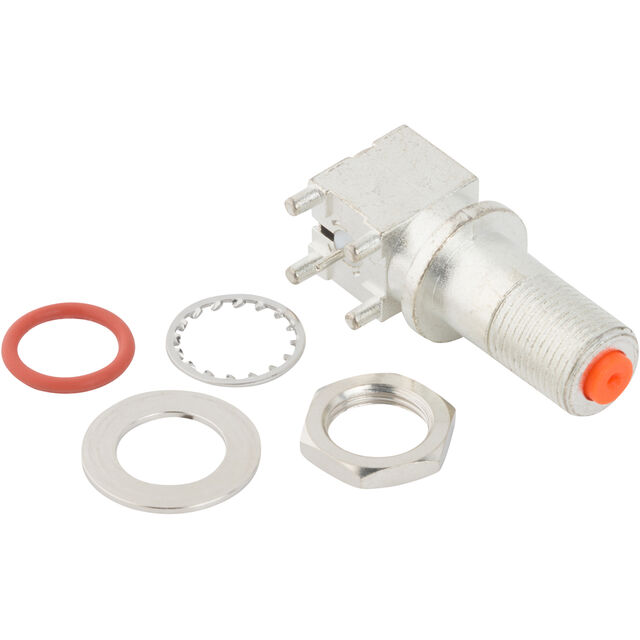

CONNECTOR: F; SOCKET; FEMALE; THT; ANGLED 90°; TINNED; ZINC ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

531-40165

Active

Amphenol RF

CONNECTOR: F; SOCKET; FEMALE; THT; ANGLED 90°; TINNED; ZINC ALLOY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	531-40165

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Tin
Connector Style	F Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2.15 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

531 Series

Part	Conversion Type	Center Contact Plating	Body Material	Adapter Type	Adapter Series	Fastening Type	Body Finish	Frequency - Max [Max]	Style	Center Contact Material	Mounting Feature	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Impedance	Center Gender	Convert To (Adapter End)	Mating Cycles	Mounting Type	Housing Color	Shield Termination	Number of Ports	Connector Style	Contact Termination	Connector Type	Insertion Loss	Includes	Ingress Protection	Cable Group	Features
Amphenol RF 531-40010	Between Series	Tin-Lead	Brass	Plug to Jack	F to G	Snap-On Threaded	Tin-Lead	1 GHz	Straight	Phosphor Bronze	Bulkhead	F Jack Female Socket	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	75 Ohms
Amphenol RF 531-40120	Same Series	Tin	Brass	Jack to Jack	F to F		Tin	1.2 GHz	Straight	Beryllium Copper	Bulkhead	F Jack Female Socket	-40 °C	85 °C	Polytetrafluoroethylene (PTFE)	75 Ohms	Female to Female	F Jack Female Socket	200
Amphenol RF 531-40119	Same Series	Tin	Brass	Jack to Jack	G to G	Snap-On	Tin	1 GHz	Straight	Beryllium Copper	Bulkhead	G Jack Female Socket	-40 °C	105 ░C	Polytetrafluoroethylene (PTFE)	75 Ohms	Female to Female	Female Socket G Jack
Amphenol RF 531-40039		Tin	Brass				Tin	3 GHz		Phosphor Bronze			-40 °C	60 °C	Polytetrafluoroethylene (PTFE)	75 Ohms			500	Board Edge End Launch	Silver	Solder	1	F Type	Solder	Female Socket Receptacle
Amphenol RF 531-40070		Gold	Brass			Snap-On	Tin	1 GHz		Beryllium Copper			-40 °C	105 ░C	Polytetrafluoroethylene (PTFE)	75 Ohms				Through Hole	Silver	Solder	1	G Type	Solder	Female Socket Jack	0.1 dB
Amphenol RF 531-40165		Tin	Zinc Die Cast				Tin	2.15 GHz		Phosphor Bronze	Bulkhead - Front Side Nut		-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	75 Ohms				Panel Mount Right Angle Through Hole	Silver	Solder	1	F Type	Solder	Female Socket Jack		1 Connector 1 Lockwasher 1 Nut	IP67 - Dust Tight Waterproof
Amphenol RF 531-40188		Tin	Brass				Nickel	1 GHz		Brass			-40 °C	60 °C	Polytetrafluoroethylene (PTFE)	75 Ohms				Free Hanging (In-Line)	Silver	Crimp	1	F Type	Crimp	Male Pin Plug		1 Connector 1 Contact 1 Ferrule		179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179
Amphenol RF 531-40156		Tin	Brass				Tin	3 GHz		Beryllium Copper	Bulkhead - Front Side Nut		-40 °C	105 ░C	Polytetrafluoroethylene (PTFE)	75 Ohms				Panel Mount Right Angle Through Hole	Silver	Solder	1	F Type	Solder	Female Socket Jack
Amphenol RF 531-40035-1006		Tin	Zinc Die Cast				Tin	1 GHz		Beryllium Copper	Bulkhead - Front Side Nut		-40 °C	60 °C	Polytetrafluoroethylene (PTFE)	75 Ohms			500	Board Edge Cutout Panel Mount	Silver	Solder	1	F Type	Solder	Female Socket Receptacle		1 Connector 1 Lockwasher 1 Nut			Board Guide
Amphenol RF 531-40148	Same Series	Nickel	Brass	Plug to Jack	F to F		Nickel	1 GHz	Straight	Copper Alloy		F Jack Female Socket	-40 °C	85 °C	Polypropylene (PP)	75 Ohms		F Plug Male Pin		Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.78
		10	$ 10.44
		25	$ 10.04
		50	$ 9.64
		100	$ 9.10
		300	$ 8.30
		500	$ 7.76
		1000	$ 7.12
TME	N/A	100	$ 9.22
		300	$ 9.01

Description

General part information

531 Series

F Type Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

No documents available
