Description
General part information
CBW58 Series

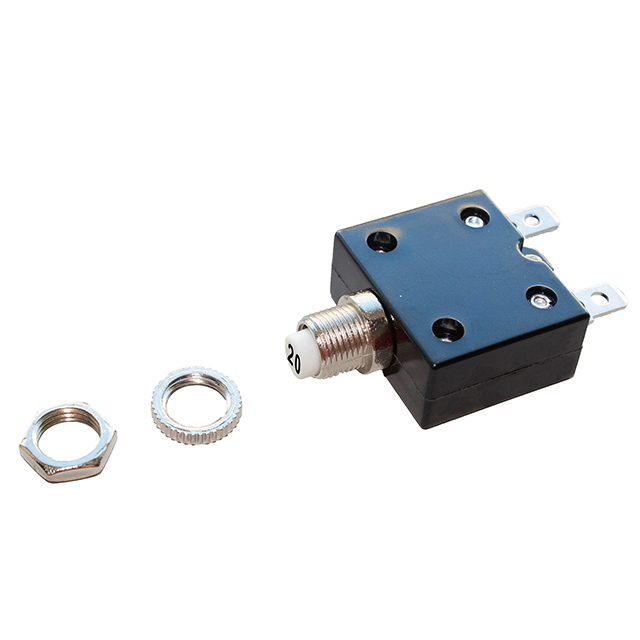

Circuit Breaker Thermal 20A 250 V AC 50 V DC Push to Reset Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CBW58-HS-20A-5C |
|---|---|
| Actuator Type | Push to Reset |
| Approval Agency | SAE J1171, UL 1077, UL 1500, cURus, IP 40 |
| Breaker Type | Thermal |
| Current Rating | 20 A |
| Illumination | None |
| Mounting Type | Panel Mount |
| Number of Poles | 1 |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 50 V |
