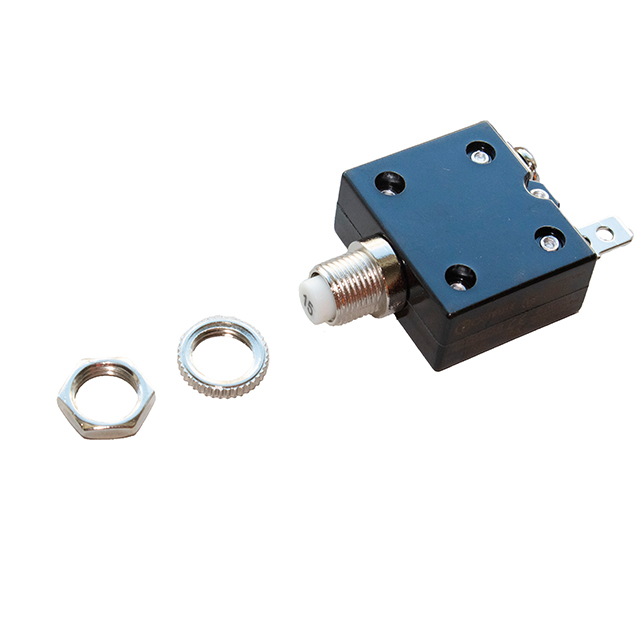

CBW58-HL4-15A-5C

Active

OptiFuse

CIR BRKR THRM 15A 250VAC 50VDC

Search across all available documentation for this part.

Active

OptiFuse

CIR BRKR THRM 15A 250VAC 50VDC

Technical Specifications

Parameters and characteristics for this part

Part	Breaker Type	Approval Agency	Voltage Rating - DC	Number of Poles	Actuator Type	Illumination	Current Rating (Amps)	Voltage Rating - AC
OptiFuse CBW58-EL-50A	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	50 A	250 V
OptiFuse CBW58-HL-25A	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	25 A	250 V
OptiFuse CBW58-HL4-30A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	30 A	250 V
OptiFuse CBW58-HL4-15A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	15 A	250 V
OptiFuse CBW58-HS-15A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	15 A	250 V
OptiFuse CBW58-HF-5A-5CBV	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	5 A	250 V
OptiFuse CBW58-HB-5A	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	5 A	250 V
OptiFuse CBW58-HF-8A-5CBV	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	8 A	250 V
OptiFuse CBW58-HL4-10A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	10 A	250 V
OptiFuse CBW58-HS-25A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	25 A	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.63

General part information

Circuit Breaker Thermal 15A 250 V AC 50 V DC Push to Reset Panel Mount
