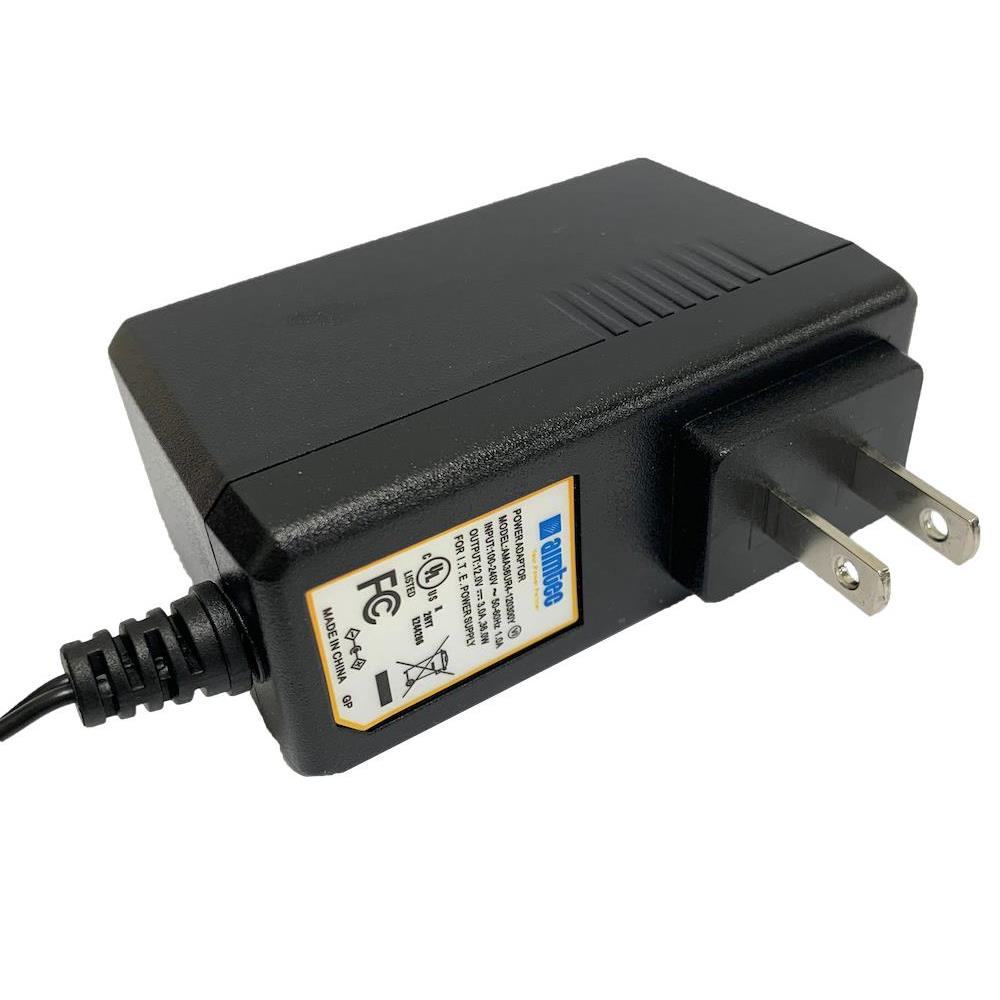

AMA36UR4-120300Y
Activeaimtec
AC/DC WALL MOUNT ADAPTER 12V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMA36UR4-120300Y
Activeaimtec
AC/DC WALL MOUNT ADAPTER 12V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMA36UR4-120300Y |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CE |
| Cord Length | 60.2 in |
| Cord Length | 1.5 m |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | North America |
| Size / Dimension [x] | 83 mm |
| Size / Dimension [x] | 3.27 in |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [z] | 2.97 in |
| Size / Dimension [z] | 75.5 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
| Weight | 0.289 lb |
| Weight | 131 g |
AMA36 Series
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Cord Length | Cord Length | Input Type | Output Connector [diameter] | Output Connector [x] | Output Connector | Form | Standard Number | Efficiency | Approval Agency | No Load Power Consumption [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Polarization | Voltage - Output | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Region Utilized | Weight [custom] | Weight [custom] | Input Connector | Current - Output (Max) [Max] | Weight | Weight | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
aimtec | 90 VAC | 264 VAC | 60.2 in | 1.5 m | Cord | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | Desktop (Class II) | 60950-1 | Level VI | CE UL | 75 mW | 40 °C | 0 °C | Positive Center | 12 V | ITE (Commercial) | 33.9 mm | 100 mm | 50 mm | 1.33 " | 1.97 " | 3.94 in | 36 W | International | 270 g | 0.595 lb | IEC 320-C8 | 3 A | |||
aimtec | 90 VAC | 264 VAC | 60.2 in | 1.5 m | Fixed Blade | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | Wall Mount (Class II) | 60950-1 | Level VI | CE UL | 75 mW | 40 °C | 0 °C | Positive Center | 12 V | ITE (Commercial) | 75.5 mm | 83 mm | 35 mm | 2.97 in | 1.38 " | 3.27 in | 36 W | North America | NEMA 1-15P | 3 A | 0.289 lb | 131 g | |||
aimtec | 90 VAC | 264 VAC | 60.2 in | 1.5 m | Cord | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | Desktop (Class II) | 60950-1 | Level VI | CE UL | 40 °C | 0 °C | Positive Center | 12 V | ITE (Commercial) | 33.9 mm | 100 mm | 50 mm | 1.33 " | 1.97 " | 3.94 in | 30 W | International | 270 g | 0.595 lb | IEC 320-C8 | 2.5 A | 100 mW | |||
aimtec | 90 VAC | 264 VAC | 60.2 in | 1.5 m | Fixed Blade | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | Wall Mount (Class II) | 60950-1 | Level VI | CE UL | 75 mW | 40 °C | 0 °C | Positive Center | 12 V | ITE (Commercial) | 75.5 mm | 83 mm | 35 mm | 2.97 in | 1.38 " | 3.27 in | 36 W | North America | NEMA 1-15P | 3 A | 0.289 lb | 131 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.48 | |
| 96 | $ 27.34 | |||
| 192 | $ 26.25 | |||
| 384 | $ 24.93 | |||
| 768 | $ 23.44 | |||
| 1536 | $ 22.27 | |||
| 3072 | $ 21.37 | |||
Description
General part information
AMA36 Series
12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
