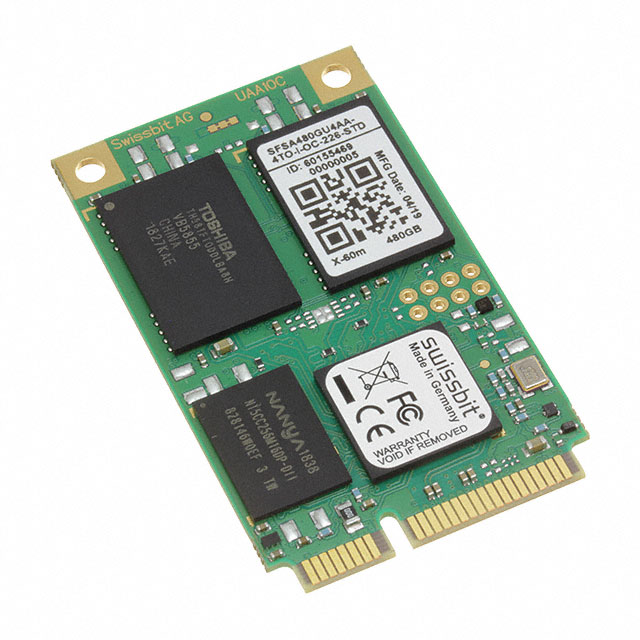

SFSA480GU4AA4TO-I-OC-226-STD

Active

SWISSBIT

SSD, INTERNAL, MSATA, SATA 6 GB/S (SATA III), 480 GB, MLC NAND, AES 256-BIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN

SFSA480GU4AA4TO-I-OC-226-STD

Active

SWISSBIT

SSD, INTERNAL, MSATA, SATA 6 GB/S (SATA III), 480 GB, MLC NAND, AES 256-BIT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA480GU4AA4TO-I-OC-226-STD

Current - Max [Max]	960 mA
Form Factor	mSATA
Memory Size	480 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2 in
Size / Dimension [y]	29.85 mm
Size / Dimension [z]	3.3 mm
Speed - Read	520 MB/s
Speed - Write	450 MB/s
Type	SATA III
Voltage - Supply	3.3 V

SFSA480 Series

Part	Speed - Write	Type	Speed - Read	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Memory Size	Current - Max [Max]	Form Factor	Voltage - Supply
SWISSBIT SFSA480GQ2AK2TO-I-8C-236-STD	490 MB/s	SATA III	565 MB/s	100 mm	70 mm	7 mm	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 °C	2.5 in	480 GB
SWISSBIT SFSA480GM3AA4TO-C-OC-626-STD	450 MB/s	SATA III	520 MB/s	80 mm	22 mm	3.6 mm	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C		480 GB	960 mA	M.2 Module	3.3 V
SWISSBIT SFSA480GM3AA4TO-I-OC-626-STD	450 MB/s	SATA III	520 MB/s	80 mm	22 mm	3.6 mm	Solid State Drive (SSD) FLASH - NAND (MLC)	85 °C	-40 °C		480 GB	960 mA	M.2 Module	3.3 V
SWISSBIT SFSA480GQ1AA8TO-I-OC-22P-STD	450 MB/s	SATA III	520 MB/s	80 mm	22 mm	3.6 mm	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 °C	2.5 in	480 GB	610 mA
SWISSBIT SFSA480GM3AA4TO-I-OC-426-STD	450 MB/s	SATA III	520 MB/s	80 mm	22 mm	3.6 mm	Solid State Drive (SSD) FLASH - NAND (MLC)	85 °C	-40 °C		480 GB	960 mA	M.2 Module	3.3 V
SWISSBIT SFSA480GU4AA4TO-C-OC-226-STD	450 MB/s	SATA III	520 MB/s	2 in	29.85 mm	3.3 mm	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C		480 GB	960 mA	mSATA	3.3 V
SWISSBIT SFSA480GQ1AA8TO-C-OC-22P-STD	450 MB/s	SATA III	520 MB/s	80 mm	22 mm	3.6 mm	Solid State Drive (SSD) FLASH - NAND (pSLC)	70 °C	0 °C	2.5 in	480 GB	610 mA
SWISSBIT SFSA480GU4AA4TO-I-OC-226-STD	450 MB/s	SATA III	520 MB/s	2 in	29.85 mm	3.3 mm	Solid State Drive (SSD) FLASH - NAND (MLC)	85 °C	-40 °C		480 GB	960 mA	mSATA	3.3 V
SWISSBIT SFSA480GU2AK2TO-C-8C-236-STD	490 MB/s	SATA III	565 MB/s	2 in	29.85 mm	3.8 mm	Solid State Drive (SSD) FLASH - NAND (TLC)	70 °C	0 °C		480 GB		mSATA	3.3 V
SWISSBIT SFSA480GM2AK2TO-I-8C-536-STD	490 MB/s	SATA III	565 MB/s	80 mm	22 mm	3.58 mm	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 °C		480 GB		M.2 Module	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 669.51
		10	$ 593.73
Newark	Each	1	$ 669.86

Description

General part information

SFSA480 Series

Solid State Drive (SSD) FLASH - NAND (MLC) 480GB SATA III mSATA 3.3V

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
