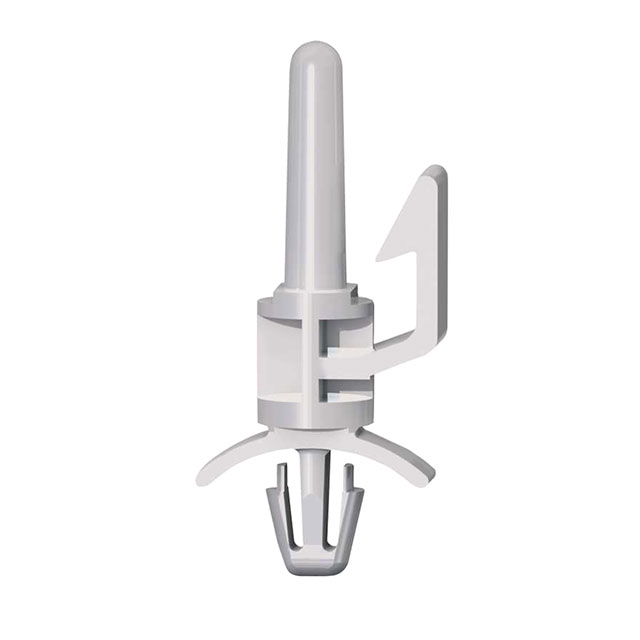

Specification	EHCBS-14-01

Between Board Height	0.875 in
Features	Winged
Holding Type	Edge Holding
Length - Overall	1.803 in
Material	Nylon
Mounting Hole Diameter	0.187 in
Mounting Panel Thickness (Max)	0.078 in
Mounting Panel Thickness (Min)	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter	0.157 in
Support Panel Thickness	0.062 in
Support Panel Thickness (Fraction)	1/16"

EHCBS Series

Part	Support Hole Diameter	Support Hole Diameter (Alternate)	Between Board Height	Mounting Panel Thickness (Max)	Mounting Panel Thickness (Min)	Mounting Hole Diameter	Material	Support Panel Thickness	Support Panel Thickness (Fraction)	Holding Type	Features	Length - Overall	Mounting Type
Essentra Components EHCBS-7-10-19	0.156 in	5/32"	0.625 in	0.078 in	0.031 in	0.187 in	Flame Retardant Nylon	0.062 in	1/16"	Edge Holding
Essentra Components EHCBS-7-8-01	0.157 in		0.5 in	0.078 in	0.031 in	0.187 in	Nylon	0.062 in	1/16"	Edge Holding	Winged	1.126 in	Snap Lock
Essentra Components EHCBS-8-14-01			0.875 in	0.078 in	0.031 in	0.187 in	Nylon			Edge Holding			Snap Lock
Essentra Components EHCBS-6-6-01	0.157 in		0.375 in	0.078 in	0.031 in	0.187 in	Nylon	0.062 in	1/16"	Edge Holding	Winged	0.945 in	Snap Lock
Essentra Components EHCBS-7-10-01	0.157 in		0.625 in	0.078 in	0.031 in	0.187 in	Nylon	0.062 in	1/16"	Edge Holding	Winged	1.252 in	Snap Lock
Essentra Components EHCBS-6-12-01	0.157 in		0.75 in	0.078 in	0.031 in	0.187 in	Nylon	0.062 in	1/16"	Edge Holding	Winged	1.323 in	Snap Lock
Essentra Components EHCBS-10-19	0.156 in	5/32"	0.625 in	0.078 in	0.031 in	0.187 in	Flame Retardant Nylon	0.062 in	1/16"	Edge Holding
Essentra Components EHCBS-9-6-01			0.375 in	0.078 in	0.031 in	0.187 in	Nylon			Edge Holding		0.945 in	Snap Lock
Essentra Components EHCBS-7-8-19	0.156 in	5/32"	0.5 in	0.078 in	0.031 in	0.187 in	Flame Retardant Nylon	0.062 in	1/16"	Edge Holding
Essentra Components EHCBS-6-8-19	0.156 in	5/32"	0.5 in	0.078 in	0.031 in	0.187 in	Flame Retardant Nylon	0.062 in	1/16"	Edge Holding
