EHCBS-6-6-01

Active

Essentra Access Solutions

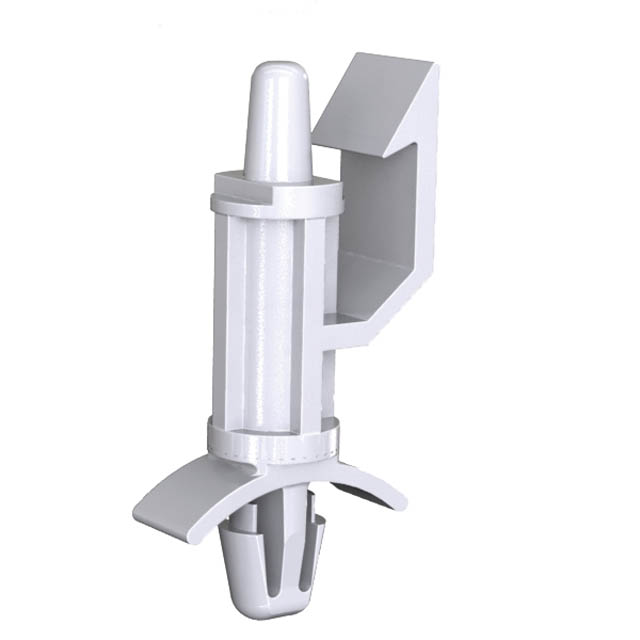

BRD SPT EDGE HOLD SNAP LOCK 3/8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EHCBS-6-6-01

Active

Essentra Access Solutions

BRD SPT EDGE HOLD SNAP LOCK 3/8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHCBS-6-6-01

Between Board Height	0.375 in
Between Board Height	0.375 in
Between Board Height	9.53 mm
Features	Winged
Holding Type	Edge Holding
Length - Overall [x]	0.945 in
Length - Overall [x]	24 mm
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

EHCBS Series

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Between Board Height	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Material	Holding Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Features
Essentra Access Solutions EHCBS-7-10-19	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	15.88 mm	0.625 in	0.625 in	0.187 in	4.75 mm	3 in	0.15625 in	3.96 mm	0.156 in	Nylon Flame Retardant	Edge Holding
Essentra Access Solutions EHCBS-7-8-01	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	12.7 mm	0.5 in	0.5 in	0.187 in	4.75 mm	3 in		3.99 mm	0.157 "	Nylon	Edge Holding	Snap Lock	1.126 in	28.6 mm	Winged
Essentra Access Solutions EHCBS-8-14-01				0.79 mm	1.98 mm	0.031 in	0.078 "	0.875 in	0.875 in	22.23 mm	0.187 in	4.75 mm	3 in				Nylon	Edge Holding	Snap Lock
Essentra Access Solutions EHCBS-6-6-01	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	9.53 mm	0.375 in	0.375 in	0.187 in	4.75 mm	3 in		3.99 mm	0.157 "	Nylon	Edge Holding	Snap Lock	0.945 in	24 mm	Winged
Essentra Access Solutions EHCBS-7-10-01	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	15.88 mm	0.625 in	0.625 in	0.187 in	4.75 mm	3 in		3.99 mm	0.157 "	Nylon	Edge Holding	Snap Lock	1.252 in	31.81 mm	Winged
Essentra Access Solutions EHCBS-6-12-01	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	19.05 mm	0.75 in	0.75 in	0.187 in	4.75 mm	3 in		3.99 mm	0.157 "	Nylon	Edge Holding	Snap Lock	1.323 in	33.6 mm	Winged
Essentra Access Solutions EHCBS-10-19	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	15.88 mm	0.625 in	0.625 in	0.187 in	4.75 mm	3 in	0.15625 in	3.96 mm	0.156 in	Nylon Flame Retardant	Edge Holding
Essentra Access Solutions EHCBS-9-6-01				0.79 mm	1.98 mm	0.031 in	0.078 "	9.53 mm	0.375 in	0.375 in	0.187 in	4.75 mm	3 in				Nylon	Edge Holding	Snap Lock	0.945 in	24 mm
Essentra Access Solutions EHCBS-7-8-19	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	12.7 mm	0.5 in	0.5 in	0.187 in	4.75 mm	3 in	0.15625 in	3.96 mm	0.156 in	Nylon Flame Retardant	Edge Holding
Essentra Access Solutions EHCBS-6-8-19	0.0625 "	0.062 "	1.57 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	12.7 mm	0.5 in	0.5 in	0.187 in	4.75 mm	3 in	0.15625 in	3.96 mm	0.156 in	Nylon Flame Retardant	Edge Holding

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.63
		5	$ 0.54
		10	$ 0.45
		25	$ 0.42
		50	$ 0.40
		100	$ 0.36
		250	$ 0.34
		500	$ 0.32
		1000	$ 0.30

Description

General part information

EHCBS Series

Board Support Edge Holding / Snap Lock Nylon 0.375" (9.53mm) 3/8"
