Specification	0191600022

Insulation	Non-Insulated
Number of Wire Entries	Varies by Wire Size
Terminal Type	Single Opening, Butt Splice, Closed End
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	12 AWG

019160 Series

Part	Number of Wire Entries	Wire Gauge	Termination	Insulation	Color	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Wire Entries	Features
Molex 0191600172	Varies by Wire Size	8 AWG	Crimp	Fully Insulated	Natural	Butt Splice Closed End Single Opening
Molex 0191600028	Varies by Wire Size	8 AWG	Crimp	Fully Insulated	Natural	Butt Splice Closed End Individual Openings
Molex 0191600022	Varies by Wire Size		Crimp	Non-Insulated		Butt Splice Closed End Single Opening	12 AWG	22 AWG
Molex 0191600070	Varies by Wire Size		Crimp	Fully Insulated	Natural	Butt Splice Closed End Individual Openings	14 AWG	22 AWG

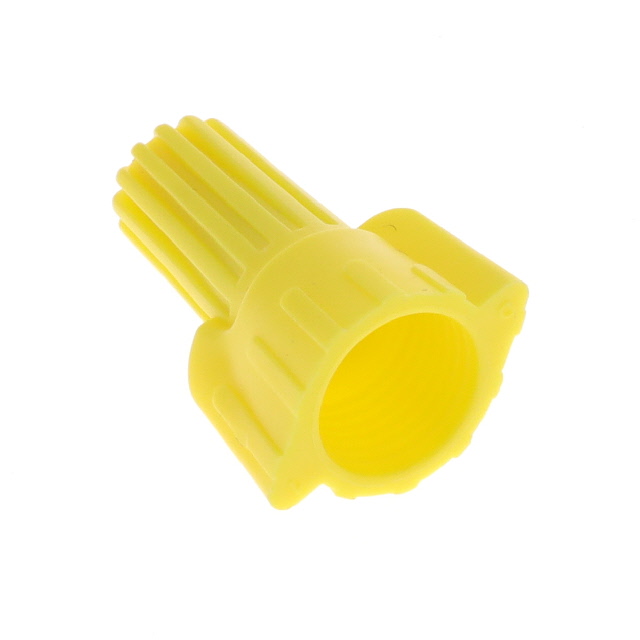

Molex 0191600044			Twist On	Fully Insulated	Yellow	Twist On Wire Cap Wing	10 AWG	18 AWG	1
Molex 0191600071	Varies by Wire Size		Crimp	Fully Insulated	Natural	Butt Splice Closed End Single Opening	12 AWG	22 AWG

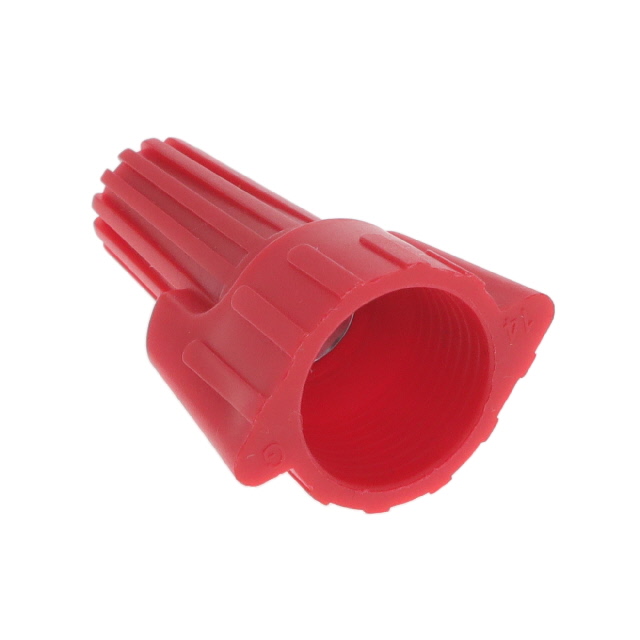

Molex 0191600045			Twist On	Fully Insulated	Red	Twist On Wire Cap Wing	8 AWG	18 AWG	1

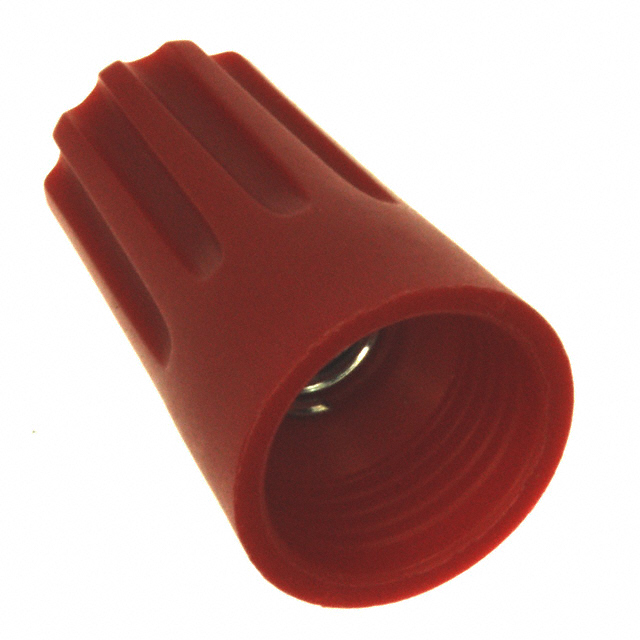

Molex 0191600043	Varies by Wire Size		Twist On	Fully Insulated	Red	Twist On Wire Cap	8 AWG	22 AWG		Copper Wire Only Flame Retardant
Molex 0191600190	Varies by Wire Size		Crimp	Fully Insulated		Butt Splice Closed End Single Opening	10 AWG	18 AWG
Molex 0191600109	Varies by Wire Size		Crimp	Fully Insulated	Natural	Butt Splice Closed End Single Opening	12 AWG	22 AWG
