Q-0404G0005108i
ActiveAmphenol Custom Cable

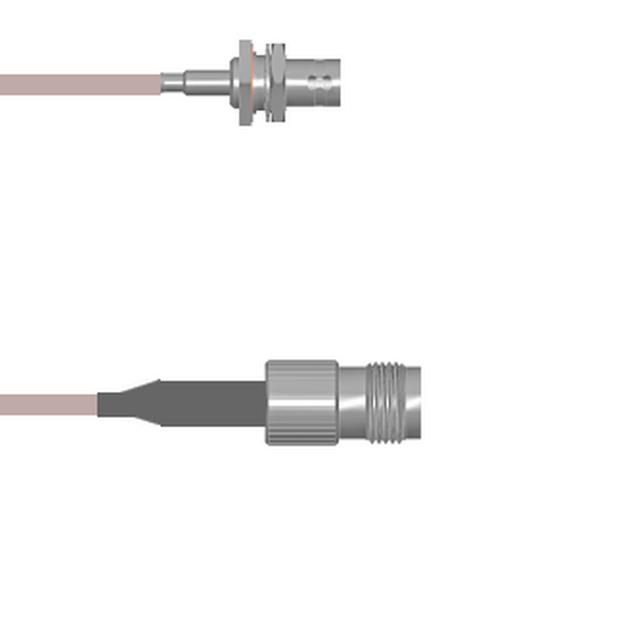

CBL ASSY BNC-TNC JACK-JACK 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0404G0005108i
ActiveAmphenol Custom Cable
CBL ASSY BNC-TNC JACK-JACK 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0404G0005108i |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | BNC to TNC |
Q-0404G0 Series
| Part | Color | Length | Length | Length | 1st Contact Gender | 2nd Contact Gender | 2nd Connector | Overall Impedance | Frequency - Max [Max] | 1st Connector | Style | 1st Connector Mounting Feature | Cable Type | 2nd Connector Mounting Type | 1st Connector Mounting Type | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Copper | 3 m | 118.1 in | 9.8 ' | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-316 | Free Hanging (In-Line) | Panel Mount | Shielded | ||
Amphenol Custom Cable | Black | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-174 | Free Hanging (In-Line) | Panel Mount | Shielded | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Black | 2 m | 78.7 in | 6.6 ft | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-174 | Free Hanging (In-Line) | Panel Mount | Shielded | ||
Amphenol Custom Cable | Black | 2.5 m | 98.4 in | 8.2 ' | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-174 | Free Hanging (In-Line) | Panel Mount | Shielded | ||
Amphenol Custom Cable | Copper | 91.44 cm | 36 in | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-316 | Free Hanging (In-Line) | Panel Mount | Shielded | |||
Amphenol Custom Cable | Black | 50 cm | 19.69 " | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-174 | Free Hanging (In-Line) | Panel Mount | Shielded | |||
Amphenol Custom Cable | Copper | 750 mm | 29.53 " | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-316 | Free Hanging (In-Line) | Panel Mount | Shielded | |||
Amphenol Custom Cable | Copper | 2.7 m | 108 in | 9 ft | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-316 | Free Hanging (In-Line) | Panel Mount | Shielded | ||
Amphenol Custom Cable | Copper | 304.8 mm | 12 " | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-316 | Free Hanging (In-Line) | Panel Mount | Shielded | |||
Amphenol Custom Cable | Copper | 609.6 mm | 24 " | Female | Female | TNC Jack | 50 Ohms | 4 GHz | BNC Jack | BNC to TNC | Bulkhead - Front Side Nut | RG-316 | Free Hanging (In-Line) | Panel Mount | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 90.69 | |
| 25 | $ 88.90 | |||
| 50 | $ 87.11 | |||
| 100 | $ 85.33 | |||
| 250 | $ 83.54 | |||
Description
General part information
Q-0404G0 Series
Cable Assembly Coaxial BNC to TNC RG-316 108.0" (2.7m) 9.0'
Documents
Technical documentation and resources
No documents available
