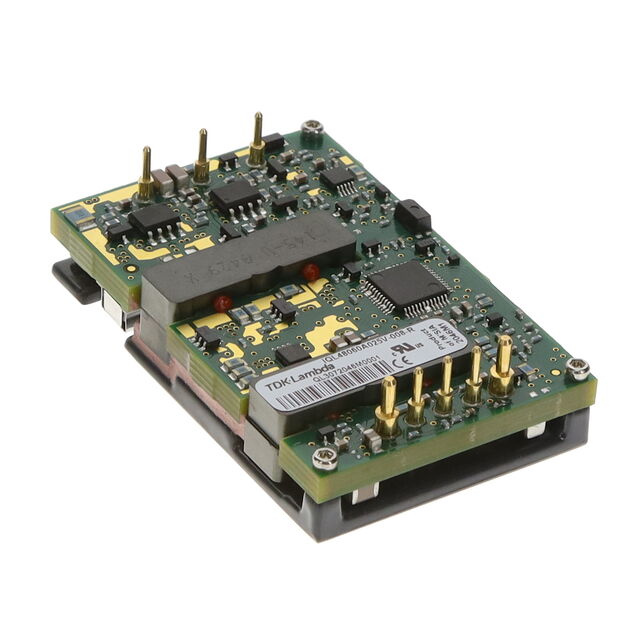

IQL48060A025V-008-R

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 150 W, 1 OUTPUT, 2.5 V

Search across all available documentation for this part.

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 150 W, 1 OUTPUT, 2.5 V

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - Through Hole 36-75VDC

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Supplier Device Package	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max) [Max]	Approval Agency	Voltage - Output 1
TDK-LAMBDA IQL48060A025V-008-R	150 W	-40 °C	115 °C	Through Hole	13.2 mm	57.9 mm	0.52 "	1.45 in	36.8 mm	2.28 in	Quarter Brick	ITE (Commercial)	36 V	1.5 kV	Isolated Module	Quarter Brick	1	75 V	89 %	60 A	CB, CE	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 36-75VDC

Technical documentation and resources
