Description
General part information
LP3965EMP-ADJ-NS

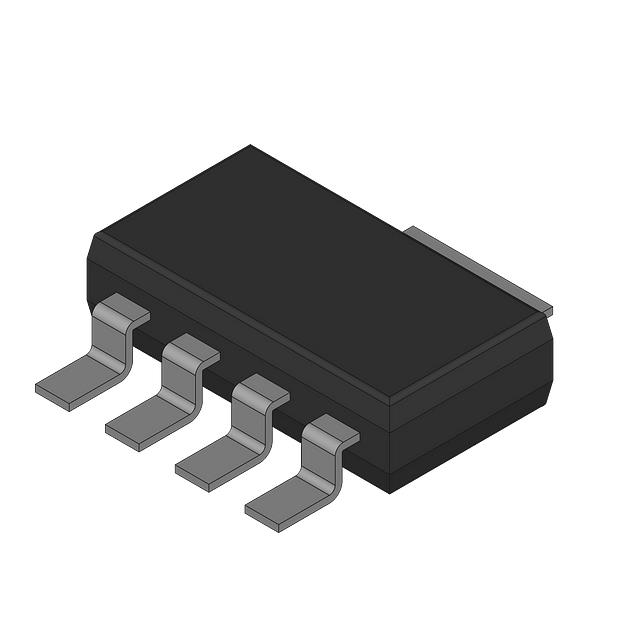

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A SOT-223
Technical Specifications
Parameters and characteristics for this part
| Specification | LP3965EMP-ADJ-NS |
|---|---|
| Control Features | Enable |
| Current - Output | 1.5 A |
| Current - Quiescent (Iq) | 9 mA |
| Current - Supply (Max) | 15 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-261AB, TO-261-5 |
| Package Name | SOT-223 |
| Protection Features | Over Current, Short Circuit, Over Temperature |
| PSRR (Maximum) | 60 dB |
| PSRR (Minimum) | 40 dB |
| Voltage - Input (Max) | 7 V |
| Voltage - Output (Max) | 5.1 V |
| Voltage - Output (Min/Fixed) | 1.216 V |
| Voltage Dropout (Max) | 0.55 V |
