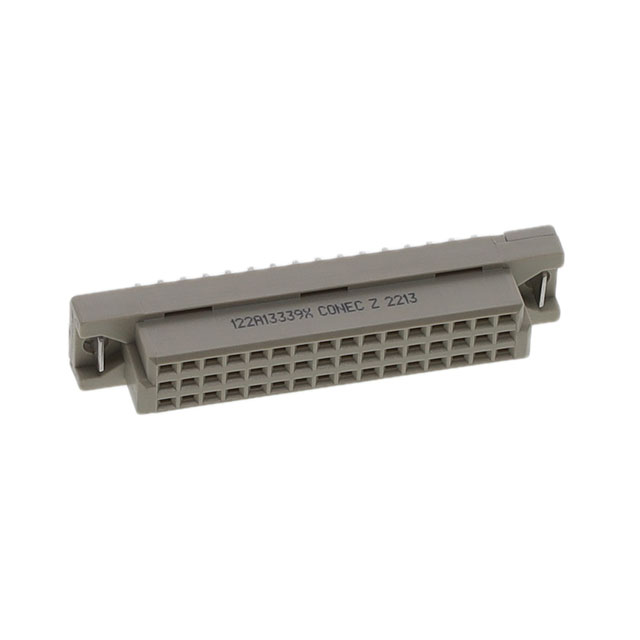

Specification	122A13339X

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating	2 A
Features	Mounting Clips
Level, Class	3
Material - Insulation	Glass Filled, PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	C/2 (1/2 C)
Termination	Solder

122A133 Series

Part	Current Rating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Features	Mounting Type	Level, Class	Style	Number of Rows	Connector Type	Contact Finish	Termination	Number of Positions	Number of Positions Loaded	Pitch	Number of Positions Loaded
McGill Microwave Systems 122A13339X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Mounting Clips	Through Hole	3	C/2 (1/2 C)	3	Female Sockets Receptacle	Gold	Solder	48	All	0.1 in
McGill Microwave Systems 122A13349X	5.5 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Mounting Clips	Panel Mount Through Hole	3	D	2	Female Sockets Receptacle	Gold	Solder	32		5.08 mm	16
McGill Microwave Systems 122A13359X	5.5 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Mounting Clips	Panel Mount Through Hole	3	D	2	Female Sockets Receptacle	Gold	Solder	32	All	5.08 mm
