Specification	97-67-18-8

Cable Exit Angle	180 °
Cable Opening	0.438 in
Color	Olive
Diameter - Outside	1.187 in
Features	Washer, Adapter, Bushing, Clamp Screws
For Use With/Related Products	97 Series Plug
Includes	Bushing, Screws, Washer, pc Cable Clamp, Adapter
Includes Total Count	7 pcs
Ingress Protection	Water Resistant
Material	Zinc Die Cast
Plating	Chromate
Shell Size - Insert	18
Shell Size - Insert	18
Thread Size (Max)	20 mm
Thread Size (Min)	1 mm
Type	Cable Clamp, Adapter

9767 Series

Part	Includes	Includes Total Count	For Use With/Related Products	Plating	Type	Color	Diameter - Outside	Ingress Protection	Material	Cable Opening	Features	Thread Pitch (TPI)	Thread Size (Nominal)	Shell Size - Insert	Cable Exit Angle	Thread Size (Min)	Thread Size (Max)	Shell Size - Insert
Amphenol Aerospace Operations 97-67-16-6	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.062 in	Water Resistant	Zinc Die Cast	0.344 in	Adapter Bushing Clamp Screws Washer	20 TPI	0.875 in	16 16S	180 °
Amphenol Aerospace Operations 97-67-18-6	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.187 in	Water Resistant	Zinc Die Cast	0.344 in	Adapter Bushing Clamp Screws Washer			18	180 °	1 mm	20 mm	18
Amphenol Aerospace Operations 97-67-22-12	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.375 in	Water Resistant	Zinc Die Cast	0.687 in	Adapter Bushing Clamp Screws Washer	18 TPI	1.1875 in	20 22	180 °
Amphenol Aerospace Operations 97-67-18-8(621)	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Zinc Alloy	Adapter Cable Clamp	Black	1.187 in	Water Resistant	Zinc Die Cast	0.438 in	Adapter Bushing Clamp Screws Washer			18	180 °	1 mm	20 mm	18
Amphenol Aerospace Operations 97-67-18-8	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.187 in	Water Resistant	Zinc Die Cast	0.438 in	Adapter Bushing Clamp Screws Washer			18	180 °	1 mm	20 mm	18

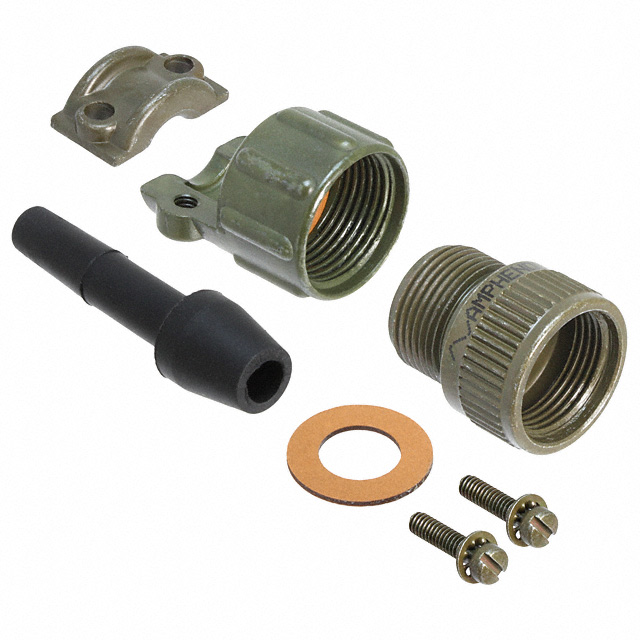

Amphenol Aerospace Operations 97-67-12-4	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	0.781 in	Water Resistant	Zinc Die Cast	0.219 in	Adapter Bushing Clamp Screws Washer	24 TPI	0.625 in	10SL 12 12S	180 °
Amphenol Aerospace Operations 97-67-16-8(621)	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Zinc Alloy	Adapter Cable Clamp	Black	1.062 in	Water Resistant	Zinc Die Cast	0.438 in	Adapter Bushing Clamp Screws Washer	20 TPI	0.875 in	16 16S	180 °
Amphenol Aerospace Operations 97-67-18-10	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.187 in	Water Resistant	Zinc Die Cast	0.562 in	Adapter Bushing Clamp Screws Washer			18	180 °	1 mm	20 mm	18
Amphenol Aerospace Operations 97-67-16-8	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.062 in	Water Resistant	Zinc Die Cast	0.438 in	Adapter Bushing Clamp Screws Washer	20 TPI	0.875 in	16 16S	180 °
Amphenol Aerospace Operations 97-67-32-20	Adapter Bushing pc Cable Clamp Screws Washer	7 pcs	97 Series Plug	Chromate	Adapter Cable Clamp	Olive	1.937 in	Water Resistant	Zinc Die Cast	1.031 in	Adapter Bushing Clamp Screws Washer	18 TPI	1.75 in	32	180 °			32
