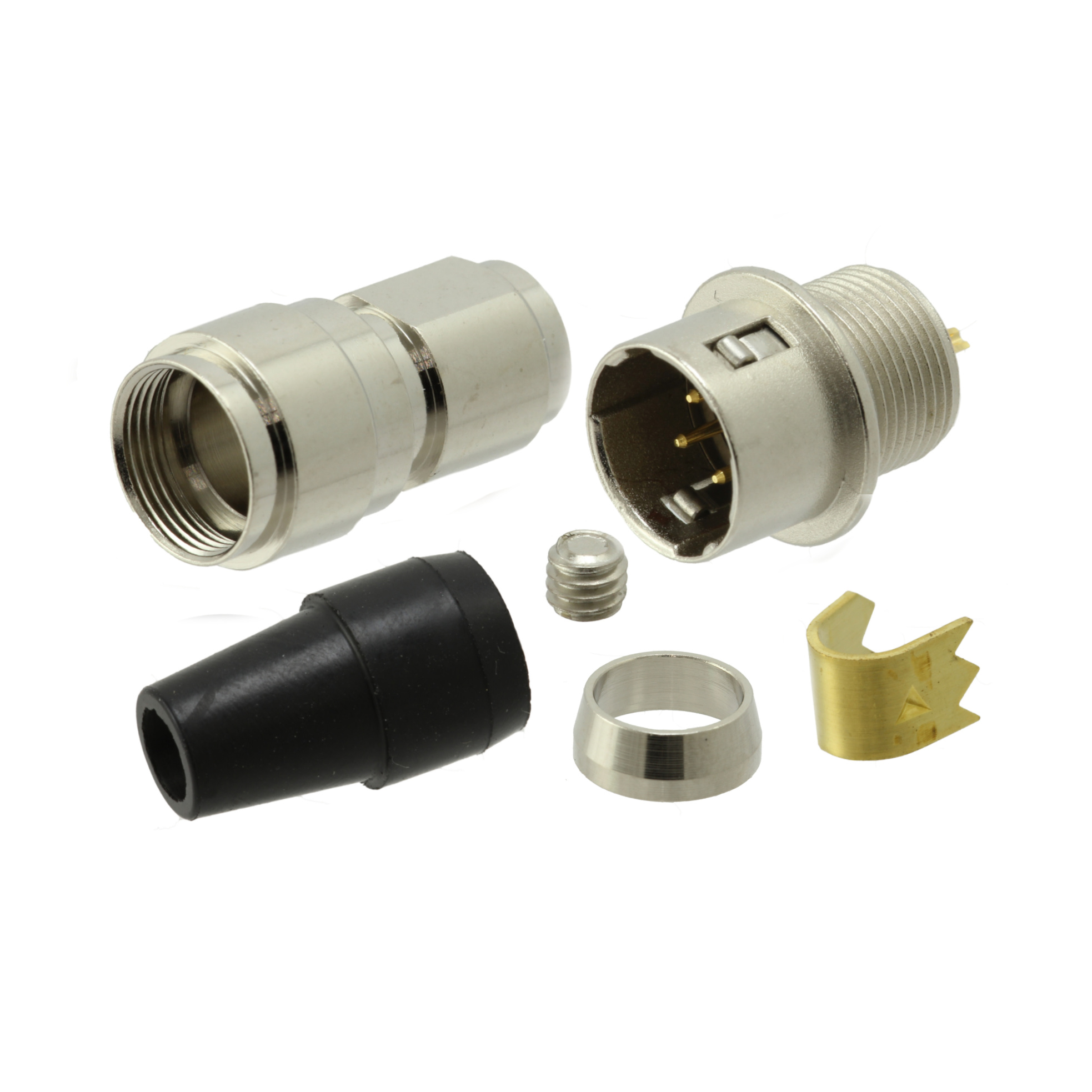

Specification	SD-PNN04-MMLAL-SX0-000

Backshell Material	Brass
Cable Opening	0.291 in
Color	Black, Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Fastening Type	Detent Lock
Features	Cable Clamp, Backshell, Strain Relief
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA46, Polyamide, Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Orientation	Keyed
Plating	Nickel
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	DIN
Shielding	Unshielded
Termination	Solder Cup

SD-PNN04 Series

Part	Number of Positions	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Termination	Shielding	Color	Shell Size - Insert	Insert Material	Material Flammability Rating	Plating	Backshell Material	Cable Opening	Primary Material	Contact Material	Contact Finish - Mating	Features	Shell Finish	Contact Finish Thickness - Mating	Shell Material	Orientation	Connector Type
Adam Tech SD-PNN04-MMLAL-SX0-000	4	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Detent Lock	Solder Cup	Unshielded	Black Silver	DIN	Nylon 4/6 PA46 Polyamide	UL94 V-0	Nickel	Brass	0.291 in	Metal	Brass	Gold	Backshell Cable Clamp Strain Relief	Nickel	Flash	Zinc Alloy	Keyed	Male Pins Plug
