100147-1
ActiveTE Connectivity AMP Connectors
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100147-1
ActiveTE Connectivity AMP Connectors
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 100147-1 | 100147 Series |
|---|---|---|
| Connector Style | A 22 | A 22 |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 110 positions | 110 positions |
| Number of Positions Loaded | All | All |
| Number of Rows | 5 | 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 500 VAC | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.42 | |
| 11 | $ 12.14 | |||
| 33 | $ 11.82 | |||
| 55 | $ 11.37 | |||
| 110 | $ 10.53 | |||
| 253 | $ 10.47 | |||
| 506 | $ 10.08 | |||
| 1001 | $ 8.99 | |||
100147 Series
CONN RECEPT 110POS 2MM PRESS-FIT
| Part | Voltage Rating | Connector Style | Number of Rows | Pitch [x] | Pitch [x] | Current Rating (Amps) | Number of Positions Loaded | Termination | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-100147-0 | 500 VAC | A 22 | 5 | 0.079 in | 2 mm | 1.5 A | All | Press-Fit | Receptacle, Female Sockets | -55 °C | 125 °C | 110 positions | Board Edge, Right Angle, Through Hole | |||
TE Connectivity AMP Connectors 100147-1 | 500 VAC | A 22 | 5 | 0.079 in | 2 mm | 1.5 A | All | Press-Fit | Receptacle, Female Sockets | -55 °C | 125 °C | 110 positions | Board Edge, Right Angle, Through Hole | 0.76 Ám | 30 Áin | Gold |
TE Connectivity AMP Connectors 100147-4 | 500 VAC | A 22 | 5 | 0.079 in | 2 mm | 1.5 A | All | Press-Fit | Receptacle, Female Sockets | -55 °C | 125 °C | 110 positions | Board Edge, Right Angle, Through Hole |
Description
General part information
100147 Series

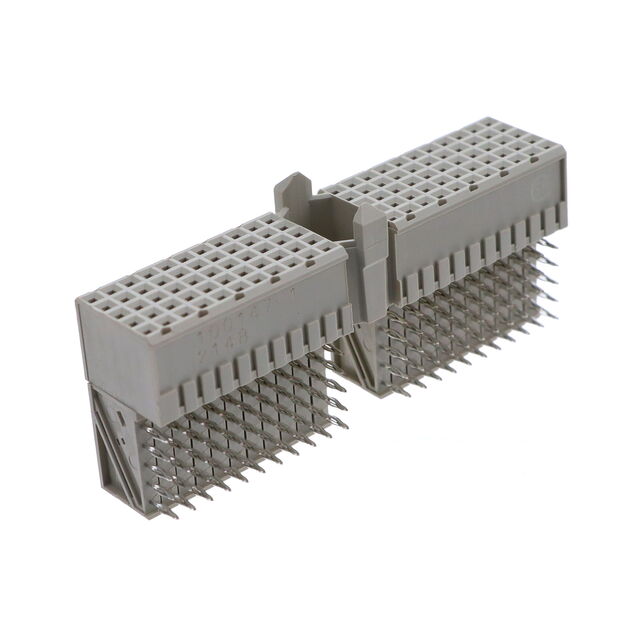

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Documents
Technical documentation and resources
