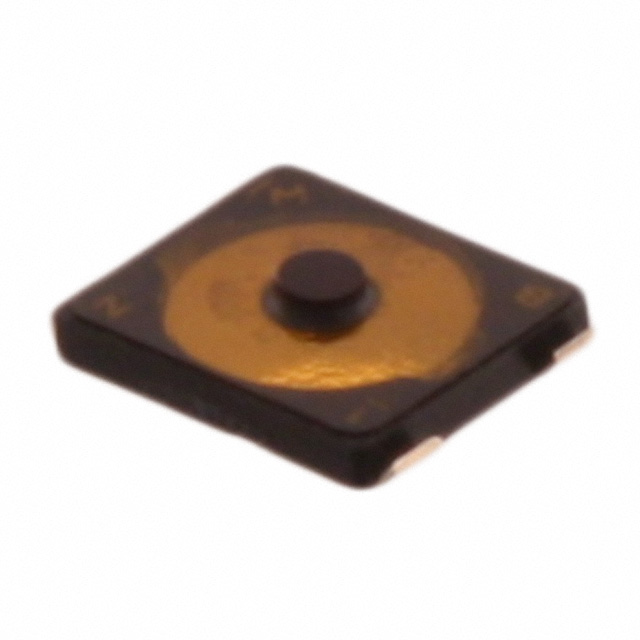

Specification	EVP-AFFG65

Actuator Height off PCB (Vertical)	0.65 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.02 A
Illumination	Non-Illuminated
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Surface Mount
Operating Force	163 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Length	3 mm
Outline Width	2.6 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	J Lead

EVP-AF Series

Part	Mechanical Life (Cycles)	Switch Travel	Circuit	Operating Force	Actuator Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Contact Rating (Current)	Mounting Type	Outline Length	Outline Width	Illumination	Actuator Orientation	Actuator Height off PCB (Vertical)	Switch Function
Panasonic Electronic Components EVP-AFKB65	100000 Cycles	0.15 mm	SPST-NO	133 gf	Standard	-40 °C	85 °C	J Lead	0.02 A	Surface Mount	3 mm	2.6 mm	Non-Illuminated	Top Actuated	0.65 mm	Off-Mom
Panasonic Electronic Components EVP-AF7B65-OTT	500000 Cycles	0.15 mm	SPST-NO	245 gf	Standard	-40 °C	85 °C	J Lead	0.02 A	Surface Mount	3 mm	2.6 mm	Non-Illuminated	Top Actuated	0.65 mm	Off-Mom
Panasonic Electronic Components EVP-AFFG65	100000 Cycles	0.15 mm	SPST-NO	163 gf	Standard	-40 °C	85 °C	J Lead	0.02 A	Surface Mount	3 mm	2.6 mm	Non-Illuminated	Top Actuated	0.65 mm	Off-Mom
Panasonic Electronic Components EVP-AFGB65	100000 Cycles	0.15 mm	SPST-NO	163 gf	Standard	-40 °C	85 °C	J Lead	0.02 A	Surface Mount	3 mm	2.6 mm	Non-Illuminated	Top Actuated	0.65 mm	Off-Mom
Panasonic Electronic Components EVP-AF7B65	500000 Cycles	0.15 mm	SPST-NO	245 gf	Standard	-40 °C	85 °C	J Lead	0.02 A	Surface Mount	3 mm	2.6 mm	Non-Illuminated	Top Actuated	0.65 mm	Off-Mom
Panasonic Electronic Components EVP-AFFB65	100000 Cycles	0.15 mm	SPST-NO	163 gf	Standard	-40 °C	85 °C	J Lead	0.02 A	Surface Mount	3 mm	2.6 mm	Non-Illuminated	Top Actuated	0.65 mm	Off-Mom
