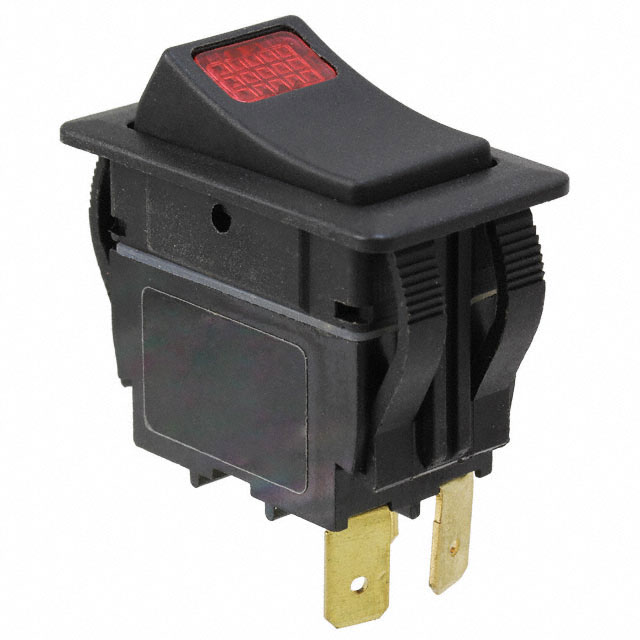

Specification	RVW41D1100-116

Actuator Marking	No Marking
Actuator Type	Concave (Curved), Illuminated
Circuit	SPST
Color	Red
Color - Actuator/Cap	Black
Current Rating	20 A
Electrical Life (Cycles)	6000 Cycles
Illumination Type	Neon
Illumination Voltage (Nominal)	125 VAC
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C, -20 °C
Panel Cutout Length	36.8 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	21 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V

rvw Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - AC	Ingress Protection IP Rating	Ingress Protection Description	Quick Connect Size (0.250")	Termination Style	Switch Function	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Actuator Marking	Color - Actuator/Cap	Actuator Type	Mounting Type	Current Rating	Circuit	Illumination Voltage (Nominal)	Illumination Type	Color	Electrical Life (Cycles)
E-Switch RVW4ED1100	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect	Off-Mom	21 mm	Rectangular	36.8 mm	No Marking	Black	Concave (Curved)	Panel Mount Snap-In	20 A	DPST-NO
E-Switch RVW41D1100-116	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect	On-Off	21 mm	Rectangular	36.8 mm	No Marking	Black	Concave (Curved) Illuminated	Panel Mount Snap-In	20 A	SPST	125 VAC	Neon	Red	6000 Cycles
E-Switch RVW41D1100	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect	On-Off	21 mm	Rectangular	36.8 mm	No Marking	Black	Concave (Curved)	Panel Mount Snap-In	20 A	SPST				6000 Cycles
E-Switch RVW4Z07D112S	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect		21 mm	Rectangular	36.8 mm	O	Black	Concave (Curved)	Panel Mount Snap-In	20 A					6000 Cycles
E-Switch RVW41D1121	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect	On-Off	21 mm	Rectangular	36.8 mm	O	Black	Concave (Curved)	Panel Mount Snap-In	20 A	SPST				6000 Cycles
E-Switch RVW42D1100	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect	On-Off	21 mm	Rectangular	36.8 mm	No Marking	Black	Concave (Curved)	Panel Mount Snap-In	20 A	DPST				6000 Cycles
E-Switch RVW42D1123	-20 °C 0 °C	55 °C	125 V	IP54	Dust Protected Water Resistant	0.25 in	Quick Connect	On-Off	21 mm	Rectangular	36.8 mm	ON OFF Vertical	Black	Concave (Curved)	Panel Mount Snap-In	20 A	DPST				6000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RVW41D1100-116.pdf
