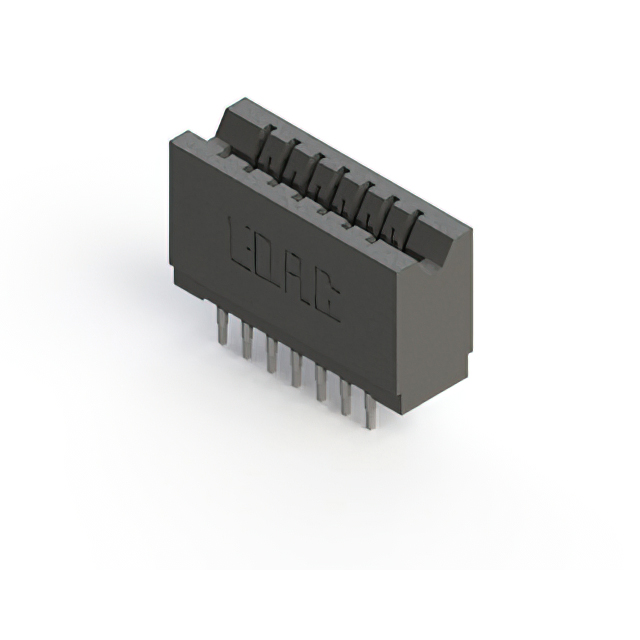

746-014-540-606

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.125

746-014-540-606

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.125

Description Specifications Series Pricing CAD Documents

Description

General part information

746-014 Series

14 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	746-014-540-606

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	7, 14
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Press-Fit, Wire Wrap
Termination Rows	2 rows

746-014 Series

Part	Contact Finish	Card Thickness (Min)	Card Thickness (Max)	Contact Type	Number of Positions	Read Out	Gender	Pitch	Mounting Type	Card Type	Number of Rows	Color	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Contact Finish Thickness	Termination Rows	Material - Insulation
EDAC Inc. 746-014-520-206	Gold	0.054 in	0.07 in	Cantilever	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic
EDAC Inc. 746-014-553-501	Gold	0.054 in	0.07 in	Cantilever	14	Single	Female	0.125 in	Through Hole	Non Specified Single Edge	1	Black	Press-Fit Wire Wrap	-40 °C	105 °C	Copper Alloy	30 µin	1 rows	Polyester Thermoplastic
EDAC Inc. 746-014-560-201	Gold	0.054 in	0.07 in	Cantilever Make Before Break	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic
EDAC Inc. 746-014-540-601	Gold	0.054 in	0.07 in	Cantilever	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit Wire Wrap	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic
EDAC Inc. 746-014-545-501	Gold	0.054 in	0.07 in	Cantilever	14	Single	Female	0.125 in	Through Hole	Non Specified Single Edge	1	Black	Press-Fit Wire Wrap	-40 °C	105 °C	Copper Alloy	30 µin	1 rows	Polyester Thermoplastic
EDAC Inc. 746-014-553-101	Gold	0.054 in	0.07 in	Cantilever	14	Single	Female	0.125 in	Through Hole	Non Specified Single Edge	1	Black	Press-Fit Wire Wrap	-40 °C	105 °C	Copper Alloy	30 µin	1 rows	Polyester Thermoplastic
EDAC Inc. 746-014-525-206	Gold	0.054 in	0.07 in	Cantilever	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic
EDAC Inc. 746-014-520-606	Gold	0.054 in	0.07 in	Cantilever	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic
EDAC Inc. 746-014-540-606	Gold	0.054 in	0.07 in	Cantilever	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit Wire Wrap	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic
EDAC Inc. 746-014-541-601	Gold	0.054 in	0.07 in	Cantilever	7 14	Dual	Female	0.125 in	Through Hole	Dual Edge Non Specified	2	Black	Press-Fit Wire Wrap	-40 °C	105 °C	Copper Alloy	30 µin	2 rows	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

746-014-540-606 | Datasheet
