DW-50-07-T-S-250

Active

Samtec Inc.

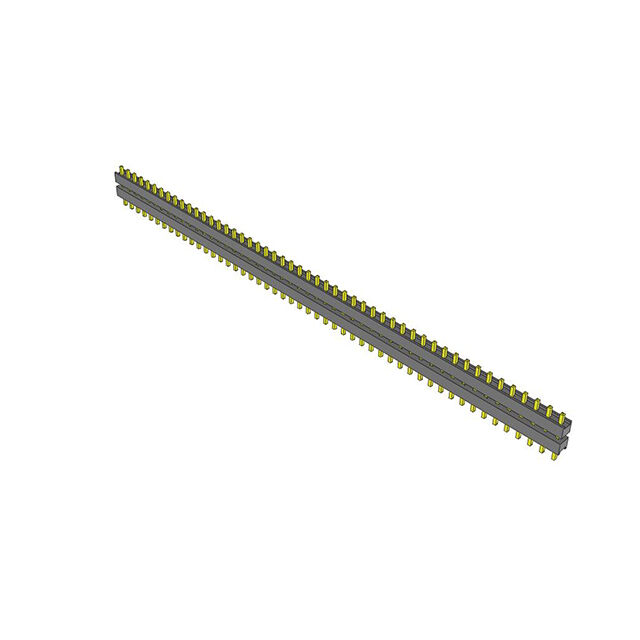

STRAIGHT TIN 50P 2.54MM BLACK SINGLE ROW PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DW-50-07-T-S-250

Active

Samtec Inc.

STRAIGHT TIN 50P 2.54MM BLACK SINGLE ROW PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-50-07-T-S-250

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	1.778 mm
Length - Post (Mating) [x]	0.07 in
Length - Stack Height [x]	0.25 in
Length - Stack Height [x]	6.35 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

DW-50-07 Series

Part	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Color	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Number of Positions	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Contact Finish - Post (Mating)	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. DW-50-07-T-D-300	2	0.3 in	7.62 mm	10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.02 in	0.508 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-L-D-212	2	0.212 in	5.385 mm	10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in			Solder	Gold	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-50-07-L-D-200	2			10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Gold	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-50-07-G-S-250	1	0.25 in	6.35 mm	10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.07 in	1.778 mm	Solder	Gold	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-50-07-T-S-250	1	0.25 in	6.35 mm	10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.07 in	1.778 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-F-D-200	2			10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Gold	Through Hole	0.076 Ám	3 Áin
Samtec Inc. DW-50-07-T-S-200	1			10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-T-S-315	1	0.315 in	8 mm	10.922 mm	0.43 in	Black			0.11 in	2.794 mm	50	2.54 mm	0.1 in	0.005 in	0.127 mm	Solder	Tin	Through Hole
Samtec Inc. DW-50-07-F-D-250-100	2	0.25 in	6.35 mm	10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.07 in	1.778 mm	Solder	Gold	Through Hole	0.076 Ám	3 Áin
Samtec Inc. DW-50-07-T-D-200	2			10.922 mm	0.43 in	Black	0.1 in	2.54 mm	0.11 in	2.794 mm	100	2.54 mm	0.1 in	0.12 in	3.048 mm	Solder	Tin	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.22
LCSC	Piece	1	$ 8.87
		200	$ 3.54
		500	$ 3.42
		1000	$ 3.36

Description

General part information

DW-50-07 Series

50 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
