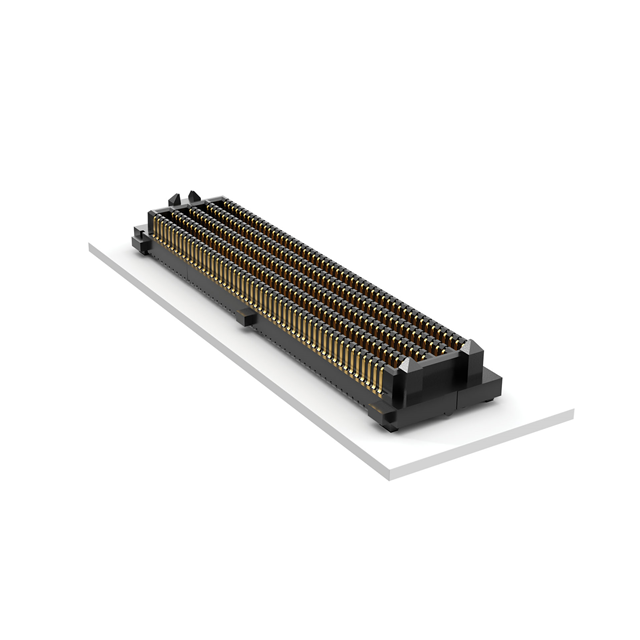

SEAM8-50-S02.0-L-10-2

Active

Samtec Inc.

CONN HD ARRAY PLUG 400P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SEAM8-S Print

SEAM8-50-S02.0-L-10-2

Active

Samtec Inc.

CONN HD ARRAY PLUG 400P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet SEAM8-S Print

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-50-S02.0-L-10-2

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	4.55 mm
Height Above Board [z]	0.179 in
Mated Stacking Heights	7 mm
Mounting Type	Surface Mount
Number of Positions	500
Number of Rows	10
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-50 Series

Part	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Features	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. SEAM8-50-S05.0-L-08-2-K	Surface Mount	Gold	10 Áin	0.25 Ám	0.8 mm	0.031 in	10	10 mm	0.297 in	7.54 mm	High Density Array Male	Board Guide	500
Samtec Inc. SEAM8-50-S02.0-S-04-2	Surface Mount	Gold	30 Áin	0.76 Ám	0.8 mm	0.031 in		7 mm			High Density Array Male	Board Guide		4.55 mm	0.179 in
Samtec Inc. SEAM8-50-S02.0-L-10-2-GP	Surface Mount	Gold	10 Áin	0.25 Ám	0.8 mm	0.031 in	10	7 mm			High Density Array Male	Board Guide Mating Flange	500	4.55 mm	0.179 in
Samtec Inc. SEAM8-50-S02.0-L-10-2	Surface Mount	Gold	10 Áin	0.25 Ám	0.8 mm	0.031 in	10	7 mm			High Density Array Male	Board Guide	500	4.55 mm	0.179 in
Samtec Inc. SEAM8-50-S05.0-S-04-1	Surface Mount	Gold	30 Áin	0.76 Ám	0.8 mm	0.031 in		10 mm	0.297 in	7.54 mm	High Density Array Male	Board Guide
Samtec Inc. SEAM8-50-S02.0-S-04-2-K	Surface Mount	Gold	30 Áin	0.76 Ám	0.8 mm	0.031 in		7 mm			High Density Array Male	Board Guide Pick and Place		4.55 mm	0.179 in
Samtec Inc. SEAM8-50-S02.0-L-06-2-K	Surface Mount	Gold	10 Áin	0.25 Ám	0.8 mm	0.031 in	6	7 mm			High Density Array Male	Board Guide Pick and Place	300	4.55 mm	0.179 in
Samtec Inc. SEAM8-50-S05.0-S-06-2	Surface Mount	Gold	30 Áin	0.76 Ám	0.8 mm	0.031 in	6	10 mm	0.297 in	7.54 mm	High Density Array Male	Board Guide	300
Samtec Inc. SEAM8-50-S05.0-S-06-2-K	Surface Mount	Gold	30 Áin	0.76 Ám	0.8 mm	0.031 in	6	10 mm	0.297 in	7.54 mm	High Density Array Male	Board Guide Pick and Place	300
Samtec Inc. SEAM8-50-S02.0-S-10-3	Surface Mount	Gold	30 Áin	0.76 Ám	0.8 mm	0.031 in	10	7 mm			High Density Array Male	Board Guide	500	4.55 mm	0.179 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SEAM8-50 Series

500 Position Connector High Density Array, Male Surface Mount Gold
