3221-20-0200-00

Active

CnC Tech, LLC

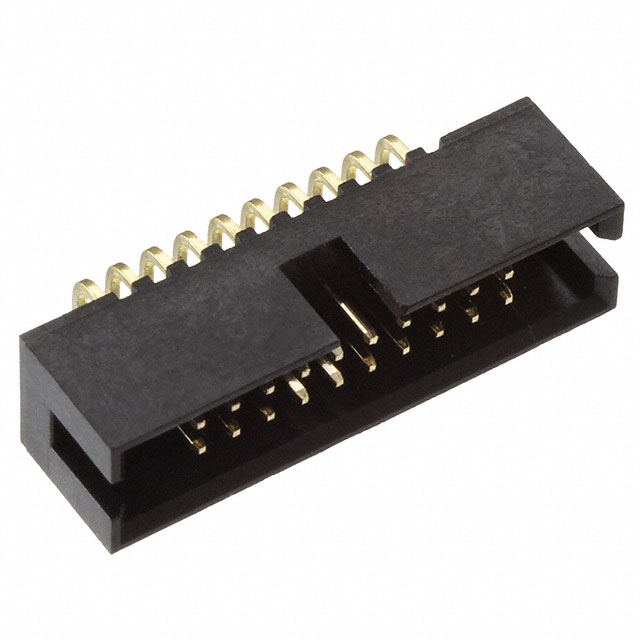

CONN HEADER R/A 20POS 1.27MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER R/A 20POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	3221-20-0200-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.083 in
Contact Length - Post	2.11 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.201 "
Insulation Height [z]	5.1 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Pitch - Mating	Pitch - Mating	Style	Insulation Material	Contact Length - Post	Contact Length - Post	Voltage Rating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Contact Finish - Post	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Number of Positions	Number of Rows	Features	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish Thickness - Post	Insulation Height
CnC Tech, LLC 3221-20-0200-00	0.05 in	1.27 mm	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)	0.083 in	2.11 mm	50 VAC	Shrouded - 4 Wall	-40 °C	105 ░C	Through Hole Right Angle	Black	Gold	Male Pin	Header	Flash	Brass	Gold	20	2	Keying Slot	UL94 V-0	Push-Pull	All	Square	0.05 in	1.27 mm	0.201 "	5.1 mm	Solder	Flash
CnC Tech, LLC 3221-20-0300-00	0.05 in	1.27 mm	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)			50 VAC	Shrouded - 4 Wall	-40 °C	105 ░C	Surface Mount	Black	Gold	Male Pin	Header	Flash	Brass	Gold	20	2	Keying Slot	UL94 V-0	Push-Pull	All	Square	0.05 in	1.27 mm	0.213 in		Solder	Flash	5.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm)
