145804070020829+

Active

KYOCERA AVX

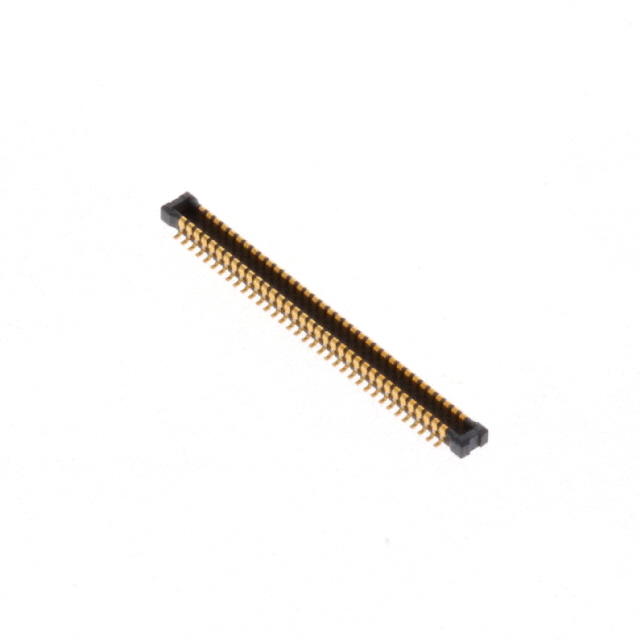

CONN PLUG 70POS SMD GOLD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN PLUG 70POS SMD GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Number of Positions	Mounting Type	Connector Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
KYOCERA AVX 145804030000829+	0.016 in	0.4 mm	Gold	2	30	Surface Mount	Outer Shroud Contacts, Plug
KYOCERA AVX 145804070020829+	0.016 in	0.4 mm	Gold	2	70	Surface Mount	Outer Shroud Contacts, Plug	0.03 in	0.75 mm	0.9 mm
KYOCERA AVX 145804020000829+	0.016 in	0.4 mm	Gold	2	20	Surface Mount	Outer Shroud Contacts, Plug
KYOCERA AVX 145804044050829+	0.016 in	0.4 mm	Gold	2	44	Surface Mount	Outer Shroud Contacts, Plug	0.033 "	0.84 mm	0.9 mm, 1.5 mm, 2 mm
KYOCERA AVX 145804060000829+	0.016 in	0.4 mm	Gold	2	60	Surface Mount	Outer Shroud Contacts, Plug
KYOCERA AVX 145804024000829+
