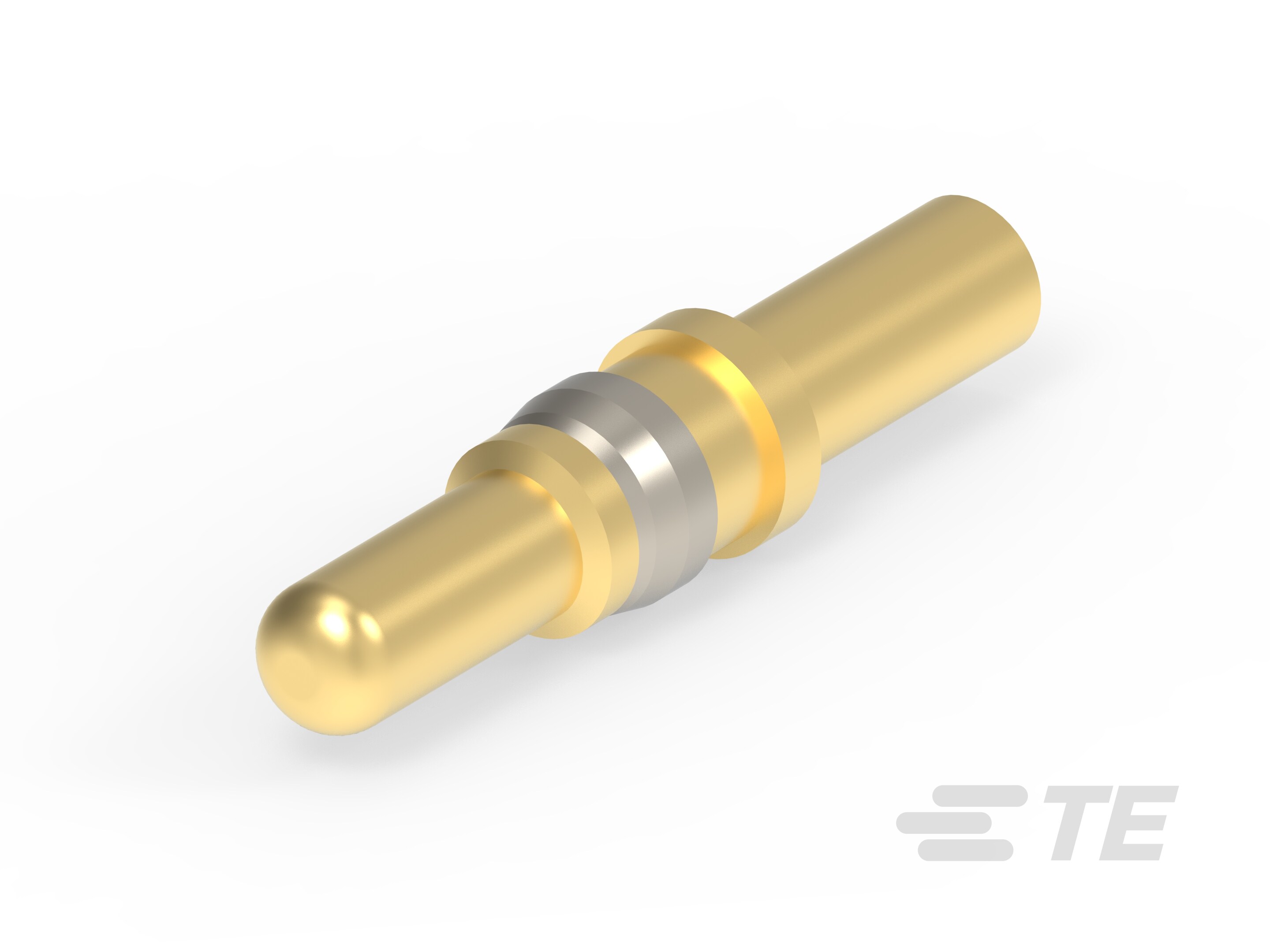

213662-1
ActiveTE Connectivity AMP Connectors
SIZE 8 PIN CONT ASSY,12-14 AWG
213662-1
ActiveTE Connectivity AMP Connectors
SIZE 8 PIN CONT ASSY,12-14 AWG
Description
General part information
METRIMATE Power VIII Series
Pin Contact, Gold (Au), 600 VAC, 600 VDC, Size 8 Contact Size, 14 – 12 AWG, 2 – 3 mm² Wire, Crimp, Copper Alloy, Power, METRIMATE Power VIII
Technical Specifications
Parameters and characteristics for this part
| Specification | 213662-1 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Power, Stamped |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
