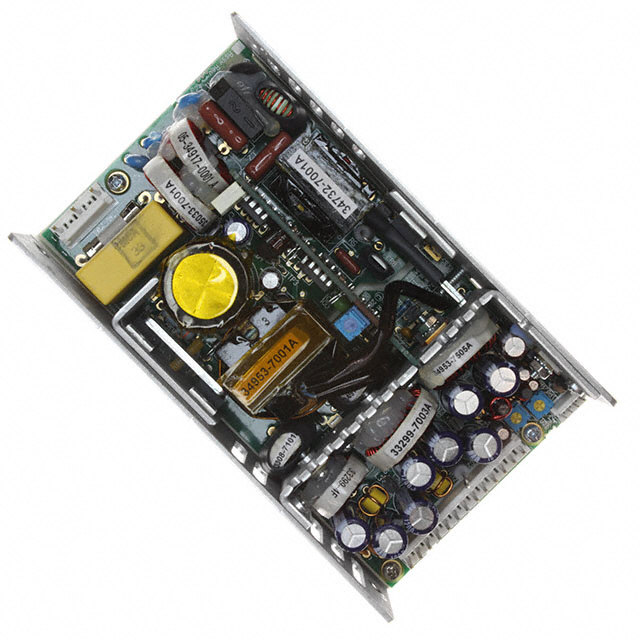

GPFC125HG

Active

SL POWER / Advanced Energy

AC/DC CNVRTR 3.3V 5V +/-12V 125W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CNVRTR 3.3V 5V +/-12V 125W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 4 Output 3.3V 5V 12V -12V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GPFC125HG	GPFC125 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	9 A	9 A
Current - Output 2	4 A	3 - 4 A
Current - Output 3	2.5 A	2.5 A
Current - Output 4	300 mA	300 mA
Efficiency	72 %	72 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	4
Power (Watts)	125 W	125 W
Size / Dimension [x]	6 in	6 in
Size / Dimension [x]	152.4 mm	152.4 mm
Size / Dimension [y]	3.5 in	3.5 in
Size / Dimension [y]	88.9 mm	88.9 mm
Size / Dimension [z]	1.5 "	1.5 "
Size / Dimension [z]	38.1 mm	38.1 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	3.3 V	3.3 - 5 V
Voltage - Output 2	5 V	5 - 24 V
Voltage - Output 3	12 V	12 - 15 V
Voltage - Output 4	-	-5 V

AC/DC CNVRTR 5V 12V +/-12V 125W

Part	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Output 3	Approval Agency	Voltage - Output 1	Current - Output 2	Current - Output 4	Power (Watts)	Voltage - Output 2	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Applications	Mounting Type	Current - Output 3	Type	Voltage - Output 4
SL POWER / Advanced Energy GPFC125AG	4	90 VAC	264 VAC	Adjustable Output, PFC, Remote Sense, Universal Input	12 V	CE	5 V	4 A	300 mA	125 W	12 V	72 %	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	9 A	ITE (Commercial)	Chassis Mount	2.5 A	Open Frame
SL POWER / Advanced Energy GPFC125DG	4	90 VAC	264 VAC	Adjustable Output, PFC, Remote Sense, Universal Input	12 V	CE	5 V	3 A	300 mA	125 W	24 V	72 %	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	9 A	ITE (Commercial)	Chassis Mount	2.5 A	Open Frame
SL POWER / Advanced Energy GPFC125HG	4	90 VAC	264 VAC	Adjustable Output, PFC, Remote Sense, Universal Input	12 V	CE	3.3 V	4 A	300 mA	125 W	5 V	72 %	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	9 A	ITE (Commercial)	Chassis Mount	2.5 A	Open Frame
SL POWER / Advanced Energy GPFC125FG	4	90 VAC	264 VAC	Adjustable Output, PFC, Remote Sense, Universal Input	15 V	CE	5 V	3.5 A	300 mA	125 W	15 V	72 %	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	9 A	ITE (Commercial)	Chassis Mount	2.5 A	Open Frame	-5 V
