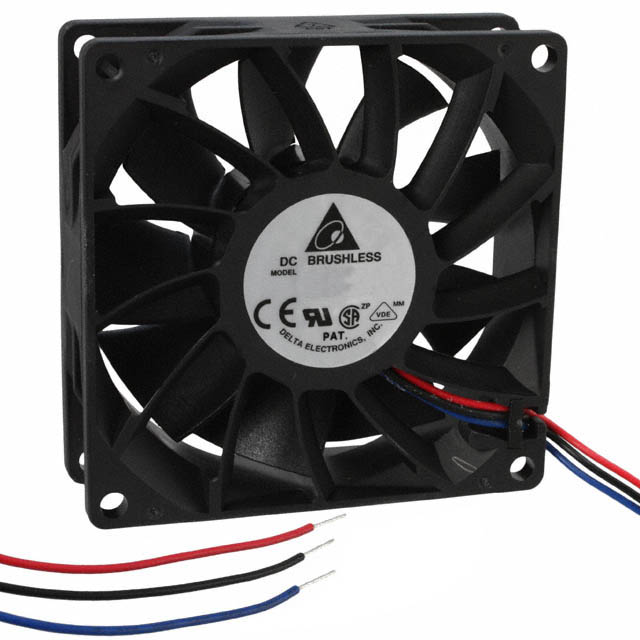

FFB0812SH-RR0

Obsolete

Delta Electronics

FAN AXIAL 80X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

FFB0812SH-RR0

Obsolete

Delta Electronics

FAN AXIAL 80X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0812SH-RR0

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	6 W
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	0.253 lb
Weight	114.76 g
Width [y]	25.4 mm

FFB0812 Series

Part	Features	Current Rating (Amps)	Fan Type	Material - Frame	Width [y]	Lifetime @ Temp.	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Noise	Air Flow	Air Flow	Voltage - Rated	Approval Agency	Material - Blade	Termination	Voltage Range [Min]	Voltage Range [Max]	RPM	Weight	Weight	Static Pressure	Static Pressure
Delta Electronics FFB0812EHE-R00	Locked Rotor Sensor	900 mA	Tubeaxial	Plastic	38 mm	70000 Hrs	Ball	80 mm	80 mm	70 °C	70 °C	-10 °C	-10 °C	10.8 W	52.5 dB(A)	80.2 CFM	2.25 mł/min	12 VDC	CE CSA UL VDE	Plastic	3 Wire Leads	7 V	13.8 VDC	5700 RPM	170.1 g	0.375 lb
Delta Electronics FFB0812SH		0.5 A	Tubeaxial	Plastic	25.4 mm	70000 Hrs	Ball	80 mm	80 mm	60 °C	60 °C	-10 °C	-10 °C	6 W	48.6 dB(A)	67 CFM	1.88 m³/min	12 VDC	CE CSA UL VDE	Plastic	2 Wire Leads	4 VDC	13.2 VDC	4500 RPM	114.76 g	0.253 lb	0.392 in H2O	97.6 Pa
Delta Electronics FFB0812SH-RR0	Locked Rotor Sensor		Tubeaxial	Plastic	25.4 mm		Ball	80 mm	80 mm					6 W				12 VDC		Plastic	3 Wire Leads				114.76 g	0.253 lb
Delta Electronics FFB0812SH-F00	Locked Rotor Protection Speed Sensor (Tach)	0.5 A	Tubeaxial	Plastic	25.4 mm	70000 Hrs	Ball	80 mm	80 mm	60 °C	60 °C	-10 °C	-10 °C	6 W	48.6 dB(A)	67 CFM	1.88 m³/min	12 VDC	CE CSA UL VDE	Plastic	3 Wire Leads	4 VDC	13.2 VDC	4500 RPM	114.76 g	0.253 lb	0.392 in H2O	97.6 Pa
Delta Electronics FFB0812SHE		580 mA	Tubeaxial	Plastic	38 mm	70000 Hrs	Ball	80 mm	80 mm	70 °C	70 °C	-10 °C	-10 °C	6.96 W	48.5 dB(A)	68.5 CFM	1.92 m³/min	12 VDC	CE CSA UL VDE	Plastic	2 Wire Leads	7 V	13.8 VDC	4900 RPM	170.1 g	0.375 lb	0.591 in H2O	147.2 Pa
Delta Electronics FFB0812VH-F00	Locked Rotor Protection Speed Sensor (Tach)	0.34 A	Tubeaxial	Plastic	25.4 mm	70000 Hrs	Ball	80 mm	80 mm	60 °C	60 °C	-10 °C	-10 °C		45.4 dB(A)	54.6 CFM	1.53 mł/min	12 VDC	CE CSA UL VDE	Plastic	3 Wire Leads	7 V	13.2 VDC	4000 RPM	115.21 g	0.254 lb	0.291 in H2O	72.5 Pa
Delta Electronics FFB0812HH		0.26 A	Tubeaxial	Plastic	25.4 mm	70000 Hrs	Ball	80 mm	80 mm	60 °C	60 °C	-10 °C	-10 °C	3.12 W	41.7 dB(A)	47.2 CFM	1.32 m³/min	12 VDC	CE CSA UL VDE	Plastic	2 Wire Leads	7 V	13.2 VDC	3500 RPM	114.76 g	0.253 lb	0.229 in H2O	57 Pa
Delta Electronics FFB0812SH-R00	Locked Rotor Sensor	0.5 A	Tubeaxial	Plastic	25.4 mm	70000 Hrs	Ball	80 mm	80 mm	60 °C	60 °C	-10 °C	-10 °C	6 W	48.6 dB(A)	67 CFM	1.88 m³/min	12 VDC	CE CSA UL VDE	Plastic	3 Wire Leads	4 VDC	13.2 VDC	4500 RPM	114.76 g	0.253 lb	0.392 in H2O	97.6 Pa
Delta Electronics FFB0812UHE		1.5 A	Tubeaxial	Plastic	38 mm	50000 Hrs	Ball	80 mm	80 mm	70 °C	70 °C	-10 °C	-10 °C	18 W	62.2 dB(A)	102 CFM	2.86 m³/min	12 VDC	CE CSA UL VDE	Plastic	2 Wire Leads	7 V	13.8 VDC	7500 RPM	170.1 g	0.375 lb	1.233 in H2O	307.1 Pa
Delta Electronics FFB0812SHE-F00	Locked Rotor Protection Speed Sensor (Tach)	580 mA	Tubeaxial	Plastic	38 mm	70000 Hrs	Ball	80 mm	80 mm	70 °C	70 °C	-10 °C	-10 °C	6.96 W	48.5 dB(A)	68.5 CFM	1.92 m³/min	12 VDC	CE CSA UL VDE	Plastic	3 Wire Leads	7 V	13.8 VDC	4900 RPM	170.1 g	0.375 lb	0.591 in H2O	147.2 Pa
