Technical Specifications
Parameters and characteristics for this part
| Specification | L5965SQ-V0T |
|---|---|
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-TFQFN Exposed Pad |
| Qualification | AEC-Q100 |

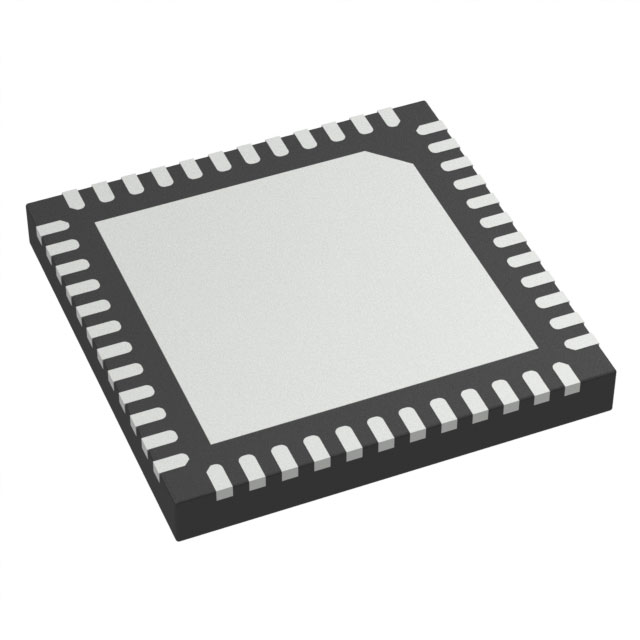

| Supplier Device Package | 48-VFQFPN (7x7) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.77 | |
| Digi-Reel® | 1 | $ 9.77 | ||
| Tape & Reel (TR) | 2500 | $ 5.74 | ||
Description
General part information
L5965 Series
L5965 is a multiple voltage regulator composed by two battery compatible BUCK pre-regulators (one of which is a controller), two BUCK post regulators with internal compensation, one BOOST, one LDO and a precise voltage reference regulator. All the regulators, except the BUCK1 pre-regulator, have internal power switches.
OTP (One Time Programmable) cells are used for the main device parameters programming (output voltages and currents, switching frequencies) and to configure the power up sequence.
An SPI interface can be used to enable or disable the single voltage regulators, for diagnostic information and to program internal blocks parameters (monitor and Power Good thresholds, slew rate, etc.).
