Specification	2357798-3

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 µin
Features	Ground Plate, Board Guide, Solder Retention
Height Above Board	0.293 in
Mated Stacking Height	8 mm
Mounting Type	Surface Mount
Number of Positions	220
Number of Rows	2
Pitch	0.02 in

2357798 Series

Part	Height Above Board	Features	Contact Finish Thickness	Contact Finish	Mated Stacking Height	Number of Rows	Connector Type	Mounting Type	Number of Positions	Pitch
TE Connectivity AMP Connectors 2357798-2	0.293 in	Board Guide Ground Plate Solder Retention	8 µin	Gold	8 mm	2	Outer Shroud Contacts Plug	Surface Mount	220	0.02 in
TE Connectivity AMP Connectors 2357798-4	0.293 in	Board Guide Ground Plate Solder Retention	8 µin	Gold	8 mm	2	Outer Shroud Contacts Plug	Surface Mount	220	0.02 in

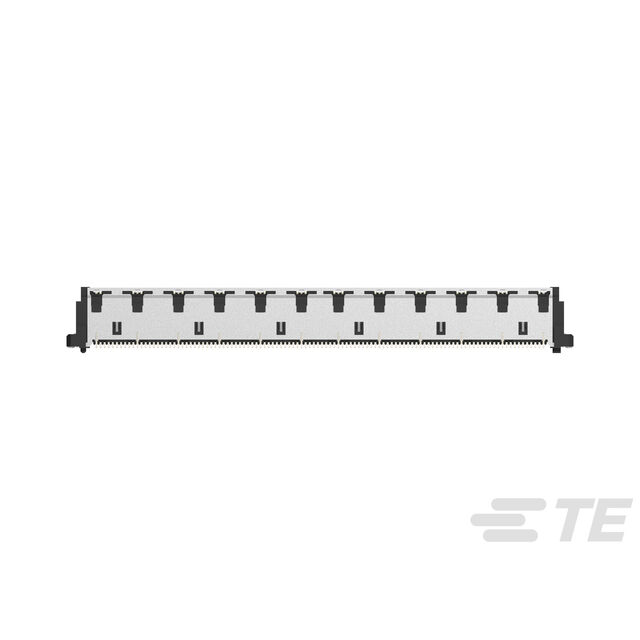

TE Connectivity AMP Connectors 2357798-1	0.293 in	Board Guide Ground Plate Solder Retention	8 µin	Gold	8 mm	2	Outer Shroud Contacts Plug	Surface Mount	220	0.02 in
TE Connectivity AMP Connectors 2357798-3	0.293 in	Board Guide Ground Plate Solder Retention	8 µin	Gold	8 mm	2	Outer Shroud Contacts Plug	Surface Mount	220	0.02 in
