5322FL 002U1000

Active

Belden Inc.

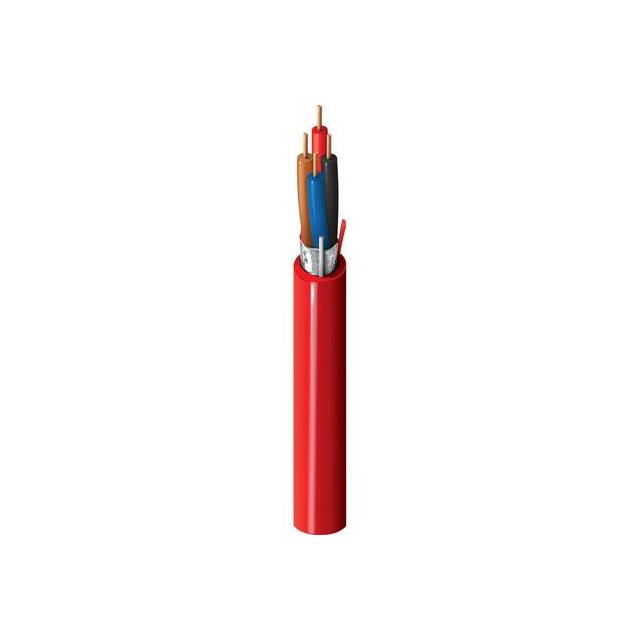

CABLE 4COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5322FL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.17 in
Jacket (Insulation) Diameter [diameter]	4.32 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style FPLR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Insulation	Cable Type	Length	Length	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Features	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand	Shield Type	Ratings	Jacket Color	Usage	Voltage	Shield Material
Belden Inc. 5322FL 002U1000	Polypropylene (PP)	Multi-Conductor	1000 ft	304.8 m	100 %	0.17 in	4.32 mm	18 AWG	Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC) Riser	4	0.432 mm	0.017 in	Copper Bare	Solid	Foil	UL Style FPLR	Red	Alarm Safety	300 V	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.35

General part information

4 Conductor Multi-Conductor Cable Red 18 AWG Foil 1000.0' (304.8m)
