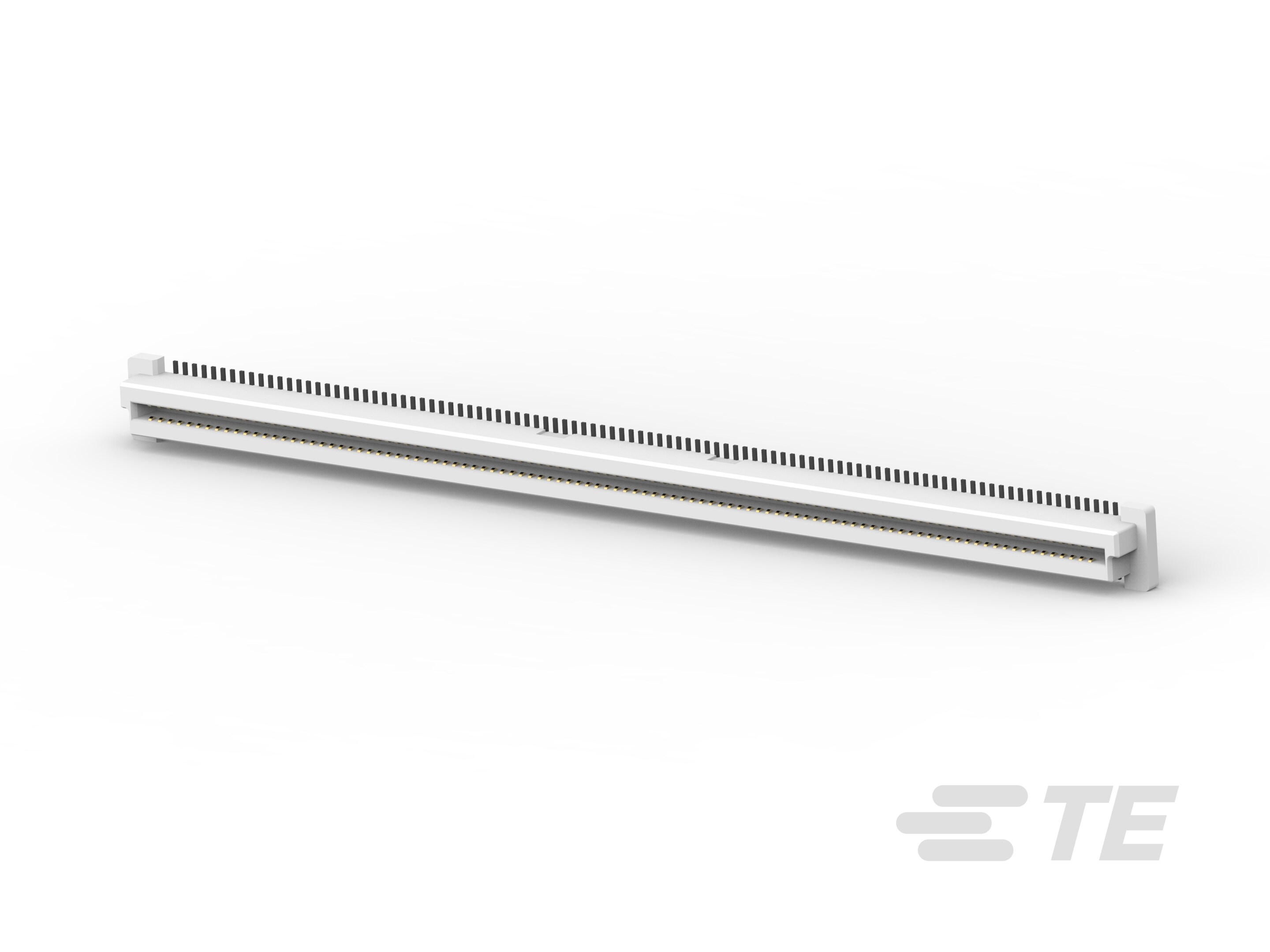

1-5177983-0
ActiveTE Connectivity AMP Connectors
CONN RCPT 200POS SMD GOLD
1-5177983-0
ActiveTE Connectivity AMP Connectors
CONN RCPT 200POS SMD GOLD
Description
General part information
5177983 Series
PCB Mount Receptacle, Vertical, Board-to-Board, 200 Position, .8 mm [.031 in] Centerline, Gold (Au), Surface Mount, Signal, Natural, Free Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-5177983-0 |
|---|---|
| Connector Type | Outer Shroud Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 µin |
| Features | Board Guide |
| Height Above Board | 0.148 in |
| Mated Stacking Height Options | 8mm, 5mm, 6mm, 7mm |
| Mounting Type | Surface Mount |
| Number of Positions | 200 |
| Number of Rows | 2 |
| Pitch | 0.031 in |
