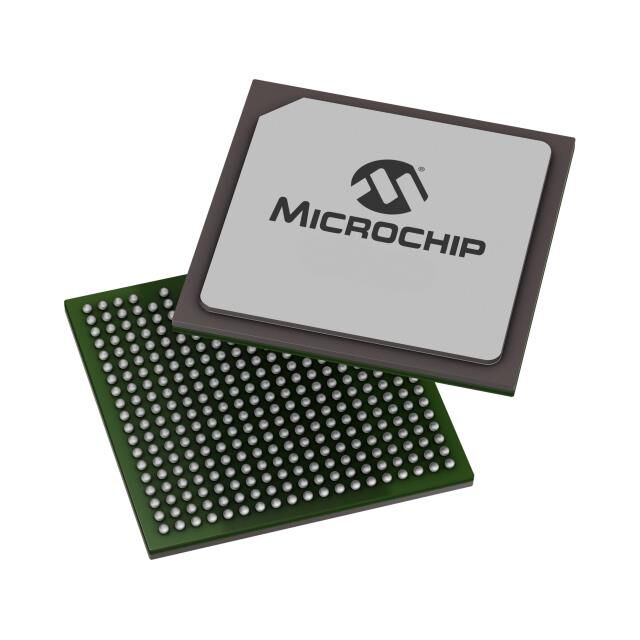

LAN9696TSN-V/3KW
Active66G INDUSTRIAL ETHERNET SWITCH
LAN9696TSN-V/3KW
Active66G INDUSTRIAL ETHERNET SWITCH
Description
General part information
LAN9696 Series
The LAN9696 is a 66 Gbps Ethernet Switch supporting a combination of 1G, 2.5G, 5G, and 10G Ethernet ports.
The device provides a rich set of Ethernet switching features including TSN, L2 switching, L3 routing, HSR/PRP redundancy, and high-precision timing.
Using multistage versatile content aware processor (VCAP) technology, it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing and flexible frame manipulation.
Technical Specifications
Parameters and characteristics for this part
| Specification | LAN9696TSN-V/3KW |
|---|---|
| Function | Switch |
| Interface | SGMII |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 356-LFBGA, FCCSPBGA |
| Package Length | 17 mm |
| Package Name | 356-FCCSP |
| Package Width | 17 mm |
| Protocol | Ethernet |
| Voltage - Supply | 0.9 V |
