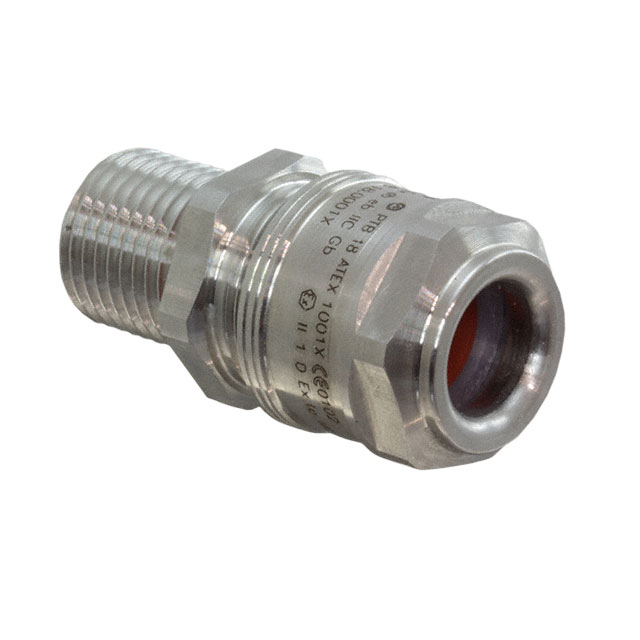

LEX216VA/316LHTS

Active

Pflitsch

CABLE GLAND 7-11MM M16 S STEEL

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 7-11MM M16 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	LEX216VA/316LHTS

Color	Silver
Includes	O-Ring
Ingress Protection	IP66/IP68
Material	Stainless Steel
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max]	0.433 in
Outside Cable Diameter (Max) [Max]	11 mm
Outside Cable Diameter (Min)	7 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in
Thread Length	16 mm
Thread Length	0.63 in
Thread Size	M16x1.5
Type	Cable Gland

Part	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Type	Color	Thread Length	Thread Length	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Material	Includes
Pflitsch LEX216VA/316LHTS	M16x1.5	0.433 in	11 mm	Cable Gland	Silver	16 mm	0.63 in	7 mm	0.276 in	130 °C	-60 °C	IP66/IP68	Stainless Steel	O-Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M16x1.5 Silver
