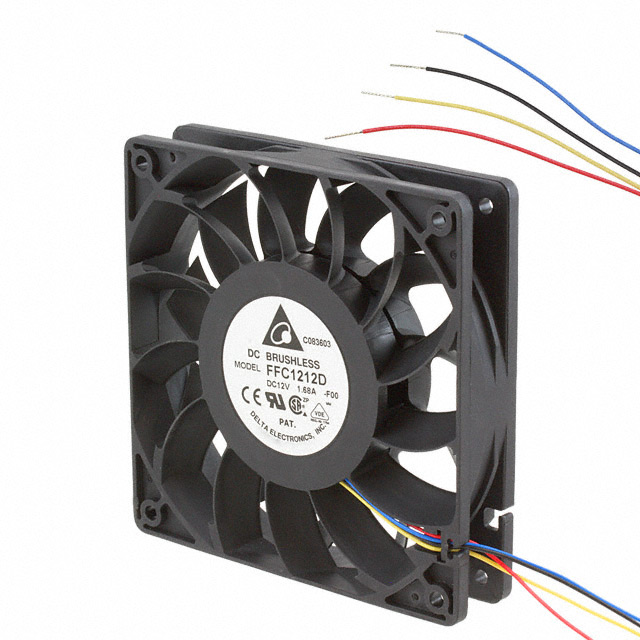

FFC1212D-F00

Active

Delta Electronics

FAN AXIAL 120X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 120X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FFC1212D-F00

Air Flow	150.3 CFM
Air Flow	4.21 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.45 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56.4 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	17.4 W
RPM	4000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	121.9 Pa
Static Pressure	0.489 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	205.02 g
Weight	0.452 lb
Width [y]	25 mm

Part	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Material - Frame	Noise	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Approval Agency	Features	Power (Watts)	Voltage - Rated	Static Pressure	Static Pressure	Termination	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Material - Blade	Fan Type	RPM	Bearing Type	Width [y]
Delta Electronics FFC1212D-F00	120 mm	120 mm	70000 Hrs	Plastic	56.4 dB(A)	205.02 g	0.452 lb	-10 °C	-10 °C	60 °C	60 °C	1.45 A	CE CSA UL VDE	Locked Rotor Protection PWM Control Speed Sensor (Tach)	17.4 W	12 VDC	121.9 Pa	0.489 in H2O	4 Wire Leads	10.8 VDC	12.6 VDC	150.3 CFM	4.21 m³/min	Plastic	Tubeaxial	4000 RPM	Ball	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 150.3 CFM (4.21m³/min) 4 Wire Leads
