ELVH-L02D Series

Part	Voltage - Supply	Port Diameter	Port Feature	Port Gender	Pressure Type	Output Type	Features	Maximum Pressure	Mounting Type	Operating Pressure	Port Style	Termination Style	Package Width	Package Features	Package Name	Package Length	Accuracy	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Bits

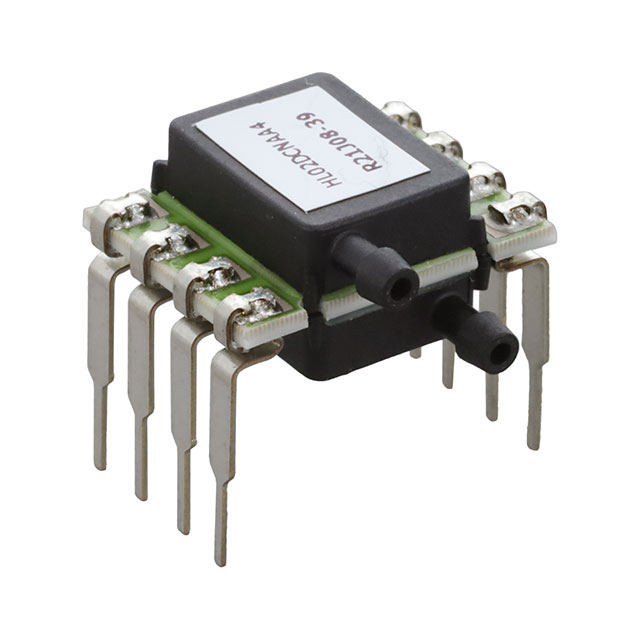

McGill Microwave Systems ELVH-L02D-HRRD-C-NAA4	3.3 V	0.06 in	Dual Tube	Male	Differential	Analog Voltage	Temperature Compensated	9.72 PSI	Through Hole	0.07 PSI	Barbed	PC Pin	12.8 mm	Dual Ports Same Side	8-DIP	0.504 in	0.25 %	0 °C	50 °C	5.5 V	2.7 V
McGill Microwave Systems ELVH-L02D-HRRD-C-N2A5	5 VDC	0.06 in	Dual Tube	Male	Differential	I2C	Temperature Compensated	9.72 PSI	Through Hole	0.07 PSI	Barbed	PC Pin	12.8 mm	Dual Ports Same Side	8-DIP	0.504 in	0.25 %	0 °C	50 °C	5.5 V	2.7 V	14 b
McGill Microwave Systems ELVH-L02D-HRRD-I-NAA4	3.3 V	0.06 in	Dual Tube	Male	Differential	Analog Voltage	Temperature Compensated	9.72 PSI	Through Hole	0.07 PSI	Barbed	PC Pin	12.8 mm	Dual Ports Same Side	8-DIP	0.504 in	0.25 %	-20 °C	85 °C	5.5 V	2.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
