ATV66SM836A-G

Active

Comchip Technology

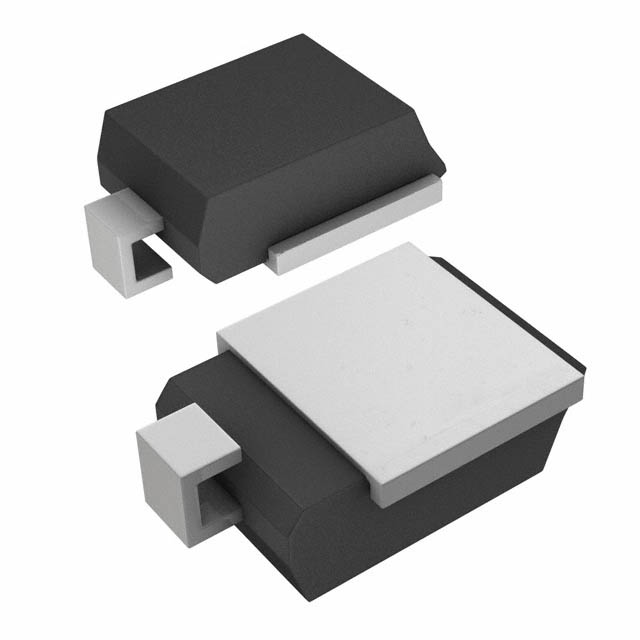

TVS DIODE 36VWM 58.1VC DO218AB

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 36VWM 58.1VC DO218AB

Technical Specifications

Parameters and characteristics for this part

Specification	ATV66SM836A-G

Current - Peak Pulse (10/1000µs)	114 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DO-218AB
Power - Peak Pulse	6600 W
Power - Peak Pulse	6.6 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-218AB
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	40 V
Voltage - Clamping (Max) @ Ipp [Max]	58.1 V
Voltage - Reverse Standoff (Typ)	36 V

TVS DIODE 36VWM 58.1VC DO218AB

Part	Unidirectional Channels [custom]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Qualification	Supplier Device Package	Power - Peak Pulse	Power - Peak Pulse	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Type	Mounting Type	Grade	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)
Comchip Technology ATV66SM836A-G	1	DO-218AB	-55 °C	175 ░C	36 V	AEC-Q101	DO-218AB	6600 W	6.6 kW		58.1 V	Zener	Surface Mount	Automotive	40 V	114 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

58.1V Clamp 114A Ipp Tvs Diode Surface Mount DO-218AB
