AXF5G3012A

Active

Panasonic Electric Works

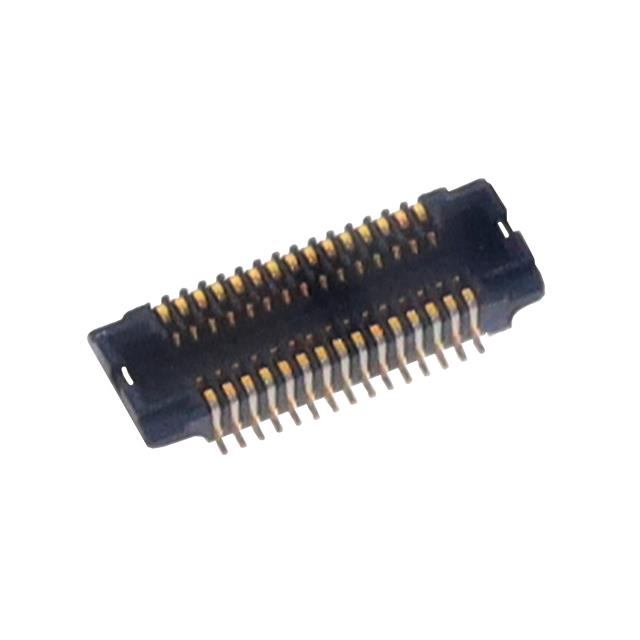

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5G3012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Number of Rows	Connector Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Pitch [x]	Pitch [x]	Number of Positions
Panasonic Electric Works AXF5G3012A	1.5 mm	2	Socket Center Strip Contacts	Surface Mount	0.057 in	1.45 mm	Gold	Solder Retention	0.016 in	0.4 mm	30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
