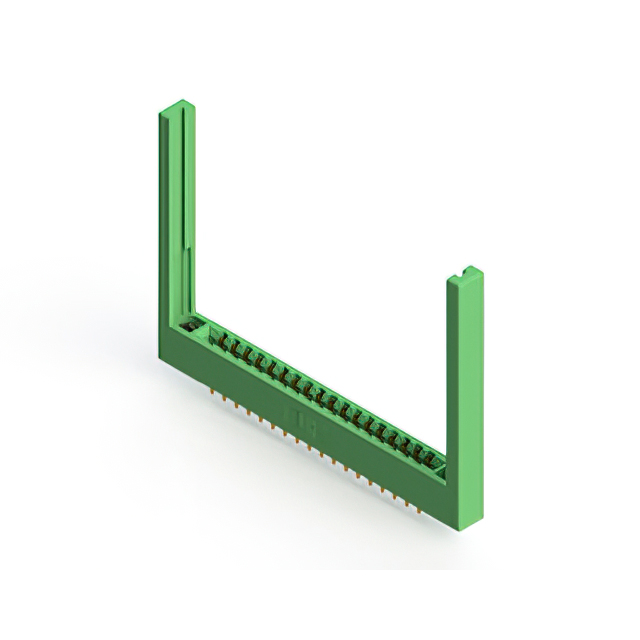

Specification	315-036-521-268

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount, Through Hole
Number of Positions	18, 36
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

315-036 Series

Part	Card Thickness (Min)	Card Thickness (Max)	Termination	Contact Material	Number of Rows	Features	Flange Feature	Number of Positions	Color	Card Type	Pitch	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Read Out	Contact Finish Thickness	Mounting Type	Contact Finish	Gender	Termination Rows	Material - Insulation	Flange Feature Diameter
EDAC Inc. 315-036-555-207	0.054 in	0.07 in	Solder	Copper Alloy	2	Card Extender	Flush Mount M3 Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Board Edge Straddle Mount	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-521-202	0.054 in	0.07 in	Solder	Copper Alloy	2		Flush Mount Top Opening Unthreaded	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Panel Mount Through Hole	Gold	Female	2 rows	Polyester Thermoplastic	0.128 in
EDAC Inc. 315-036-555-208	0.054 in	0.07 in	Solder	Copper Alloy	2	Card Extender	4-40 Flush Mount Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Board Edge Straddle Mount	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-521-278	0.054 in	0.07 in	Solder	Copper Alloy	2		4-40 Flush Mount Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Panel Mount Through Hole	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-556-202	0.054 in	0.07 in	Solder	Copper Alloy	2	Card Extender	Flush Mount Top Opening Unthreaded	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Board Edge Straddle Mount	Gold	Female	2 rows	Polyester Thermoplastic	0.128 in
EDAC Inc. 315-036-520-268	0.054 in	0.07 in	Solder	Copper Alloy	2		4-40 Flush Mount Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Panel Mount Through Hole	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-555-268	0.054 in	0.07 in	Solder	Copper Alloy	2	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Board Edge Straddle Mount	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-521-268	0.054 in	0.07 in	Solder	Copper Alloy	2		4-40 Flush Mount Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Panel Mount Through Hole	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-556-201	0.054 in	0.07 in	Solder	Copper Alloy	2	Card Extender		18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Board Edge Straddle Mount	Gold	Female	2 rows	Polyester Thermoplastic
EDAC Inc. 315-036-555-258	0.054 in	0.07 in	Solder	Copper Alloy	2	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	18 36	Green	Dual Edge Non Specified	0.156 in	Semi Bellows	-40 °C	105 °C	Dual	10 Ąin	Board Edge Straddle Mount	Gold	Female	2 rows	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

315-036-521-268 | Datasheet
