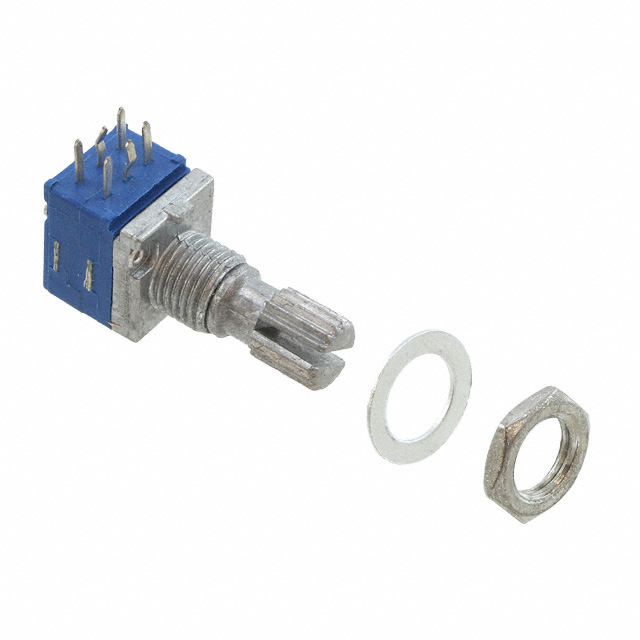

PTD902-2015K-A103

Active

Bourns Inc.

ROTARY POTENTIOMETER, 10 KOHM, 1 TURNS, AUDIO, 25 MW, ± 20%, PTD90 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PTD902-2015K-A103

Active

Bourns Inc.

ROTARY POTENTIOMETER, 10 KOHM, 1 TURNS, AUDIO, 25 MW, ± 20%, PTD90 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTD902-2015K-A103

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Knurled and Slotted
Adjustment Type	Side Adjustment
Built in Switch	False
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	2
Number of Turns	1
Power (Watts)	0.025 W
Power (Watts)	0.025 W
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.445 "
Size - Body [x]	11.3 mm
Size - Body [y]	0.374 in
Size - Body [y]	9.5 mm
Taper	Logarithmic
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTD902 Series

Part	Number of Turns	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Taper	Actuator Length [z]	Actuator Length	Resistive Material	Rotation	Bushing Thread	Bushing Thread	Termination Style	Tolerance	Adjustment Type	Power (Watts)	Power (Watts)	Actuator Type	Resistance (Ohms)	Power (Watts)	Actuator Length [z]	Resistance (Ohms)
Bourns Inc. PTD902-1015K-A104	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	10 %	Side Adjustment	0.025 W	0.025 W	Knurled and Slotted	100 kOhms
Bourns Inc. PTD902-2015K-A502	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.025 W	0.025 W	Knurled and Slotted	5 kOhms
Bourns Inc. PTD902-2015K-B502	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Linear	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.05 W		Knurled and Slotted	5 kOhms	50 mW
Bourns Inc. PTD902-2020K-A503	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic	0.787 in		Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.025 W	0.025 W	Knurled and Slotted	50 kOhms		20 mm
Bourns Inc. PTD902-2015K-A103	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.025 W	0.025 W	Knurled and Slotted				10k
Bourns Inc. PTD902-2015K-B103	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Linear	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.05 W		Knurled and Slotted		50 mW		10k
Bourns Inc. PTD902-10C5P-A203	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic			Carbon	300 ░	0.75	M7	Board Locks PC Pins	10 %	Side Adjustment	0.025 W	0.025 W	Round	20 kOhms
Bourns Inc. PTD902-2015K-A104	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.025 W	0.025 W	Knurled and Slotted	100 kOhms
Bourns Inc. PTD902-2020F-A502	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Logarithmic	0.787 in		Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.025 W	0.025 W	Flatted	5 kOhms		20 mm
Bourns Inc. PTD902-2015K-B503	1	2	0.236 in	6 mm	0.374 in	9.5 mm	0.445 "	11.3 mm	Linear	0.591 in	15 mm	Carbon	300 ░	0.75	M7	Board Locks PC Pins	20 %	Side Adjustment	0.05 W		Knurled and Slotted	50 kOhms	50 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.42
		10	$ 2.04
		25	$ 2.29
		40	$ 2.20
		144	$ 1.67
		288	$ 2.03
		576	$ 1.50
		1008	$ 1.44
		5040	$ 1.27
Newark	Each	500	$ 1.54
		1000	$ 1.34
		2500	$ 1.20

Description

General part information

PTD902 Series

10k Ohm 2 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.025W, 1/40W PC Pins, Board Locks
