182324

Active

Amphenol RF

CONN MINI UHF PLUG R/A 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

182324

Active

Amphenol RF

CONN MINI UHF PLUG R/A 50 OHM

Deep-Dive with AI

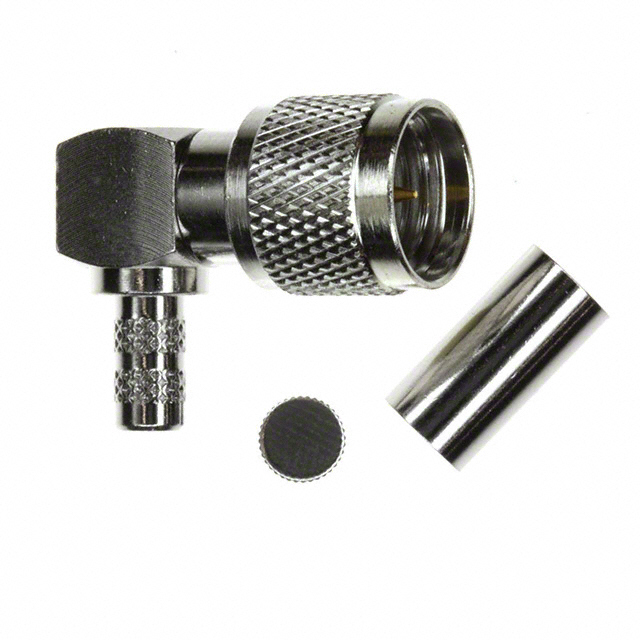

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182324

Body Finish	Nickel
Body Material	Zinc Die Cast
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Mini, UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	2.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

1823 Series

Part	Includes	Number of Ports	Housing Color	Contact Termination	Mounting Feature	Impedance	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Finish	Voltage Rating	Cable Group	Connector Style	Center Contact Plating	Mating Cycles	Body Material	Connector Type	Dielectric Material	Shield Termination	Cable Group	Mounting Type	Impedance
Amphenol RF 182318	1 Connector 1 Contact 1 Ferrule 1 Nut 1 Washer	1	Silver	Crimp	Bulkhead - Front Side Nut	50 Ohms	2.5 GHz	85 °C	-55 °C	Phosphor Bronze	Nickel	335 V	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Mini UHF	Gold	500	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp
Amphenol RF 182324	1 Connector 1 End Cap 1 Ferrule	1	Silver	Solder		50 Ohms	2.5 GHz	85 °C	-55 °C	Brass	Nickel	335 V	RG-55	Mini UHF	Gold	500	Zinc Die Cast	Male Pin Plug	Polyoxymethylene (POM) Acetal	Crimp	142 223 400	Free Hanging (In-Line) Right Angle
Amphenol RF 182302	1 Connector 1 Contact 1 Ferrule	1	Silver	Solder		50 Ohms	2.5 GHz	85 °C	-55 °C	Brass	Nickel	335 V	9258 Belden 7808A LMR240 RG-8X	Mini UHF	Gold	500	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Crimp		Free Hanging (In-Line)
Amphenol RF 182306	1 Connector 1 Ferrule	1	Silver	Solder			300 MHz			Brass	Nickel	500 V	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	UHF	Gold	500	Brass	Female Socket Jack	Polyoxymethylene (POM) Acetal	Crimp		Free Hanging (In-Line)	Non-Constant
Amphenol RF 182310	1 Connector 1 Ferrule	1	Silver	Solder			300 MHz			Beryllium Copper	Nickel	500 V	RG-55	UHF	Gold	500	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Crimp	142 223 400	Free Hanging (In-Line)	Non-Constant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 6.58

Description

General part information

1823 Series

UHF, Mini Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
