A70F1C-P05MFG0-4000

Active

ODU

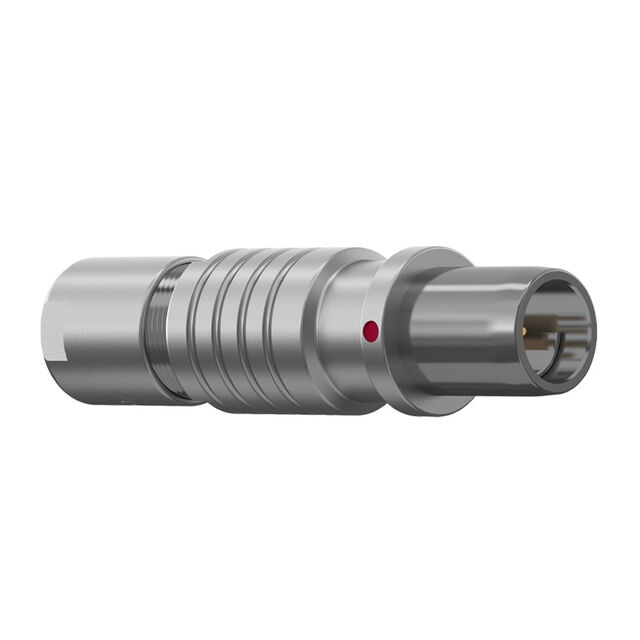

ODU MINI-SNAP PLUG, STY 7, SZ 0,

Search across all available documentation for this part.

Active

ODU

ODU MINI-SNAP PLUG, STY 7, SZ 0,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A70F1C-P05MFG0-4000	A70F1C-P Series

Applications	Military, Medical, Industrial, Testing Equipment & Measurement	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel	Brass, Chrome over Nickel
Cable Opening	-	5 mm
Cable Opening [Max] [diameter]	0.157 in	0.157 - 0.197 in
Cable Opening [Max] [diameter]	4 mm	4 mm
Cable Opening [Min] [diameter]	0.138 in	0.138 - 0.177 in
Cable Opening [Min] [diameter]	3.5 mm	3.5 - 4.5 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	7.5 A	4 - 7.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	7
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	1	1
Primary Material	Metal	Metal
Shell Finish	Chrome over Nickel	Chrome over Nickel
Shell Material	Brass	Brass
Shell Size - Insert	0	0
Shielding	Unshielded	Unshielded
Voltage Rating	200 V	200 - 300 VDC

ODU MINI-SNAP PLUG, STY 7, SZ 0,

Part	Applications	Material Flammability Rating	Mounting Type	Number of Positions	Shell Size - Insert	Voltage Rating	Shell Finish	Color	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Shell Material	Contact Finish - Mating	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Insert Material	Fastening Type	Backshell Material, Plating	Connector Type	Contact Material	Ingress Protection	Cable Opening [Max] [diameter]
ODU A70F1C-P07MCC0-5000	Industrial, Medical, Military, Testing Equipment & Measurement	UL94 V-0	Free Hanging (In-Line)	7	0	300 VDC	Chrome over Nickel	Silver	Backshell	0.197 in	0.177 in	5 mm	4.5 mm	4 A	Brass	Gold	Unshielded	Metal	-40 °C	120 °C	1	Polyetheretherketone (PEEK)	Push-Pull	Brass, Chrome over Nickel	Male Pins, Plug	Brass	IP50
ODU A70F1C-P05MFG0-4000	Industrial, Medical, Military, Testing Equipment & Measurement	UL94 V-0	Free Hanging (In-Line)		0	200 V	Chrome over Nickel	Silver	Backshell	0.157 in	0.138 in		3.5 mm	7.5 A	Brass	Gold	Unshielded	Metal	-40 °C	120 °C	1	Polyetheretherketone (PEEK)	Push-Pull	Brass, Chrome over Nickel	Male Pins, Plug	Brass	IP50	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.26

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

No documents available
