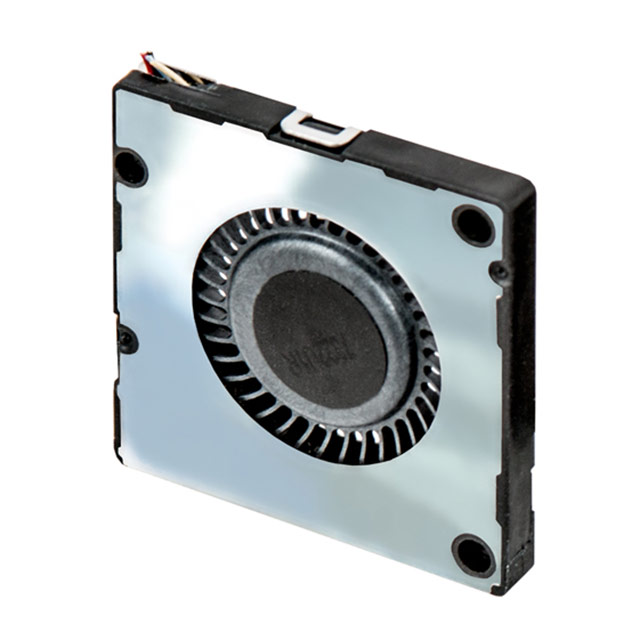

KDB0305HA3-00

Active

Delta Electronics

FAN BLOWER 30X3.5MM 5VDC RECT

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 30X3.5MM 5VDC RECT

Technical Specifications

Parameters and characteristics for this part

Specification	KDB0305HA3-00

Air Flow	0.95 CFM
Air Flow	0.027 m³/min
Approval Agency	cULus, TUV
Bearing Type	Hydrodynamic
Current Rating (Amps)	0.35 A
Fan Type	Blower
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.75 W
RPM	12500 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	235.6 Pa
Static Pressure	0.946 in H2O
Termination	4 Position Rectangular Connector
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	0.012 lb
Weight	5.44 g
Width [y]	3.5 mm

Part	Bearing Type	Voltage - Rated	Termination	Material - Blade	Features	Width [y]	RPM	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Power (Watts)	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Fan Type	Noise	Lifetime @ Temp.	Weight	Weight	Static Pressure	Static Pressure	Material - Frame	Ingress Protection
Delta Electronics KDB0305HA3-00	Hydrodynamic	5 V	4 Position Rectangular Connector	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	3.5 mm	12500 RPM	30 mm	30 mm	0.95 CFM	0.027 m³/min	1.75 W	0.35 A	4.5 V	5.5 V	-10 °C	-10 °C	60 °C	60 °C	cULus TUV	Blower	42 dB	30000 Hrs	0.012 lb	5.44 g	235.6 Pa	0.946 in H2O	Plastic	IP55 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 5VDC Square - 30mm L x 30mm H Hydrodynamic 0.950 CFM (0.027m³/min) 4 Position Rectangular Connector
