Q-2I03L0003072i

Active

Amphenol Custom Cable

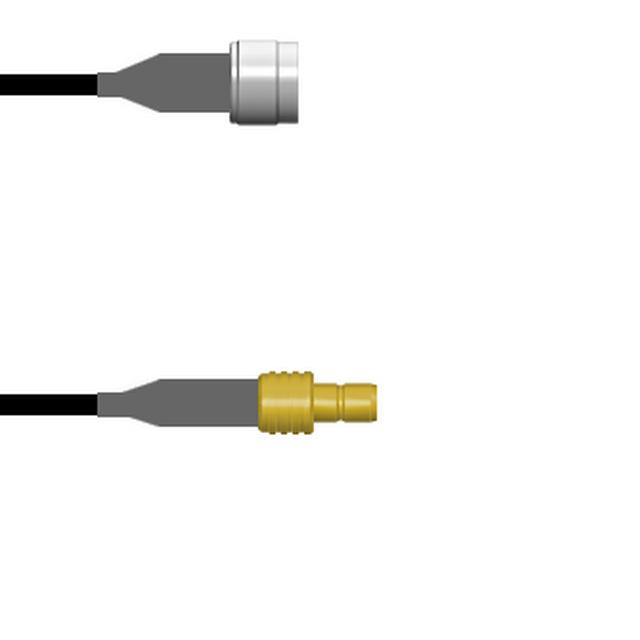

CBL ASSY SMB-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I03L0003072i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I03L0003072i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2I03L0 Series

Part	Length	Length	Length	Style	Cable Type	Color	Features	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	2nd Connector	Overall Impedance	2nd Contact Gender	1st Contact Gender
Amphenol Custom Cable Q-2I03L0005001M	1 m	3.3 ft	39.4 in	SMB to N-Type	RG-316	Copper	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0003048i	1200 mm	4 ft	48 in	SMB to N-Type	RG-174	Black	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L00031.5M	1.5 m	4.9 ft	59.1 in	SMB to N-Type	RG-174	Black	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0003012i	304.8 mm		12 "	SMB to N-Type	RG-174	Black	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0005072i	1.8 m	6 ft	72 in	SMB to N-Type	RG-316	Copper	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0003009i	228.6 mm		9 "	SMB to N-Type	RG-174	Black	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0003072i	1.8 m	6 ft	72 in	SMB to N-Type	RG-174	Black	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0005003M	3 m	9.8 '	118.1 in	SMB to N-Type	RG-316	Copper	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0005012i	304.8 mm		12 "	SMB to N-Type	RG-316	Copper	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male
Amphenol Custom Cable Q-2I03L0005024i	609.6 mm		24 "	SMB to N-Type	RG-316	Copper	Shielded	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	SMB Jack	N-Type Plug	50 Ohms	Male	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.20
		25	$ 94.31
		50	$ 92.43
		100	$ 90.55
		250	$ 88.67

Description

General part information

Q-2I03L0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
