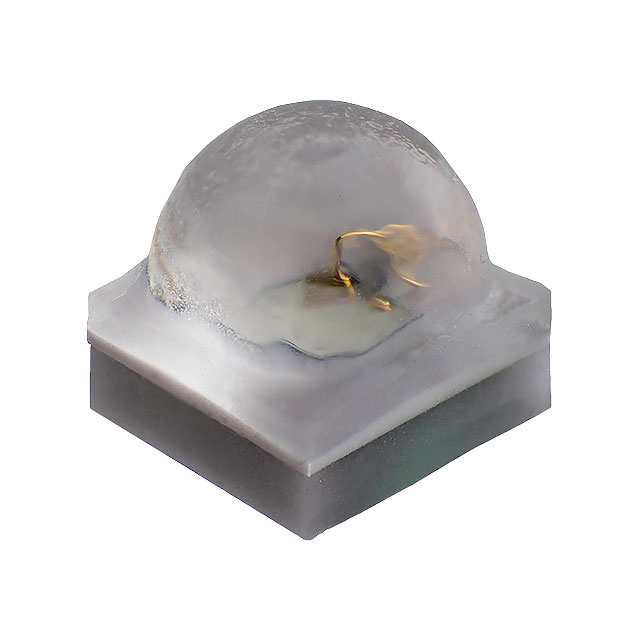

Specification	XQAGRN-00-0000-000000501

Color	Green
Current - Max	300 mA
Current - Test	175 mA
Height - Seated (Max)	0.068 in
Lumens/Watt	111 lm/W
Luminous Flux	60 lm
Luminous Flux (Maximum)	62 lm
Luminous Flux (Minimum)	57 lm
Mounting Type	Surface Mount
Package / Case	0606 (1616 Metric)
Package Diameter	1616 mm
Package Name	0606
Size / Dimension Length	0.063 in
Size / Dimension Width	0.063 in
Temperature - Test	25 °C
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	3.1 V
Wavelength	528 nm
Wavelength (Maximum)	535 nm
Wavelength (Minimum)	520 nm
Wavelength (Nominal)	528 nm

XQAGRN Series

Part	Color	Viewing Angle	Current - Test	Package Diameter	Package / Case	Package Name	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Max	Size / Dimension Length	Size / Dimension Width	Luminous Flux (Minimum)	Luminous Flux	Luminous Flux (Maximum)	Height - Seated (Max)	Lumens/Watt	Wavelength (Minimum)	Wavelength	Wavelength (Nominal)	Wavelength (Maximum)	Temperature - Test	Thermal Resistance of Package
CreeLED, Inc. XQAGRN-00-0000-000000501	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	57 lm	60 lm	62 lm	0.068 in	111 lm/W	520 nm	528 nm	528 nm	535 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000601	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	62 lm	65 lm	67 lm	0.068 in	120 lm/W	520 nm	528 nm	528 nm	535 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000Z01	Green	110 °	175 mA	1616 mm	0606 (1616 Metric)	0606 SMD	Surface Mount	3.1 V	250 mA	0.063 in	0.063 in	35 lm	38 lm	40 lm	0.068 in	64 lm/W	520 nm	528 nm	528 nm	535 nm	25 °C	26 °C/W
CreeLED, Inc. XQAGRN-00-0000-000000Z02	Green	110 °	175 mA	1616 mm	0606 (1616 Metric)	0606 SMD	Surface Mount	3.1 V	250 mA	0.063 in	0.063 in	35 lm	38 lm	40 lm	0.068 in	64 lm/W	520 nm	525 nm	525 nm	530 nm	25 °C	26 °C/W
CreeLED, Inc. XQAGRN-00-0000-000000602	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	62 lm	65 lm	67 lm	0.068 in	120 lm/W	520 nm	525 nm	525 nm	530 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000402	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	52 lm	55 lm	57 lm	0.068 in	101 lm/W	520 nm	525 nm	525 nm	530 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000603	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	62 lm	65 lm	67 lm	0.068 in	120 lm/W	525 nm	530 nm	530 nm	535 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000401	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	52 lm	55 lm	57 lm	0.068 in	101 lm/W	520 nm	528 nm	528 nm	535 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000502	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	57 lm	60 lm	62 lm	0.068 in	111 lm/W	520 nm	525 nm	525 nm	530 nm	25 °C
CreeLED, Inc. XQAGRN-00-0000-000000402	Green	115 °	175 mA	1616 mm	0606 (1616 Metric)	0606	Surface Mount	3.1 V	300 mA	0.063 in	0.063 in	52 lm	55 lm	57 lm	0.068 in	101 lm/W	520 nm	525 nm	525 nm	530 nm	25 °C
