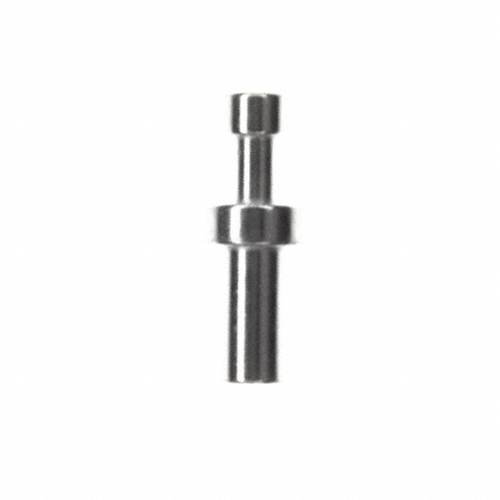

TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Search across all available documentation for this part.
2113-2-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2113-2-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.02 mm |
| Diameter - Turret Head [diameter] | 0.04 in |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.094 in |
| Length - Above Board [x] | 2.39 mm |
| Length - Below Flange [x] | 2.13 mm |
| Length - Below Flange [x] | 0.084 in |
| Length - Overall [x] | 4.52 mm |
| Length - Overall [x] | 0.178 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID [diameter] | 0.66 mm |
| Staking Side ID [diameter] | 0.026 in |
| Staking Side OD [diameter] | 1.02 mm |
| Staking Side OD [diameter] | 0.04 in |
| Terminal Type | Single End |
| Termination | Swage |
